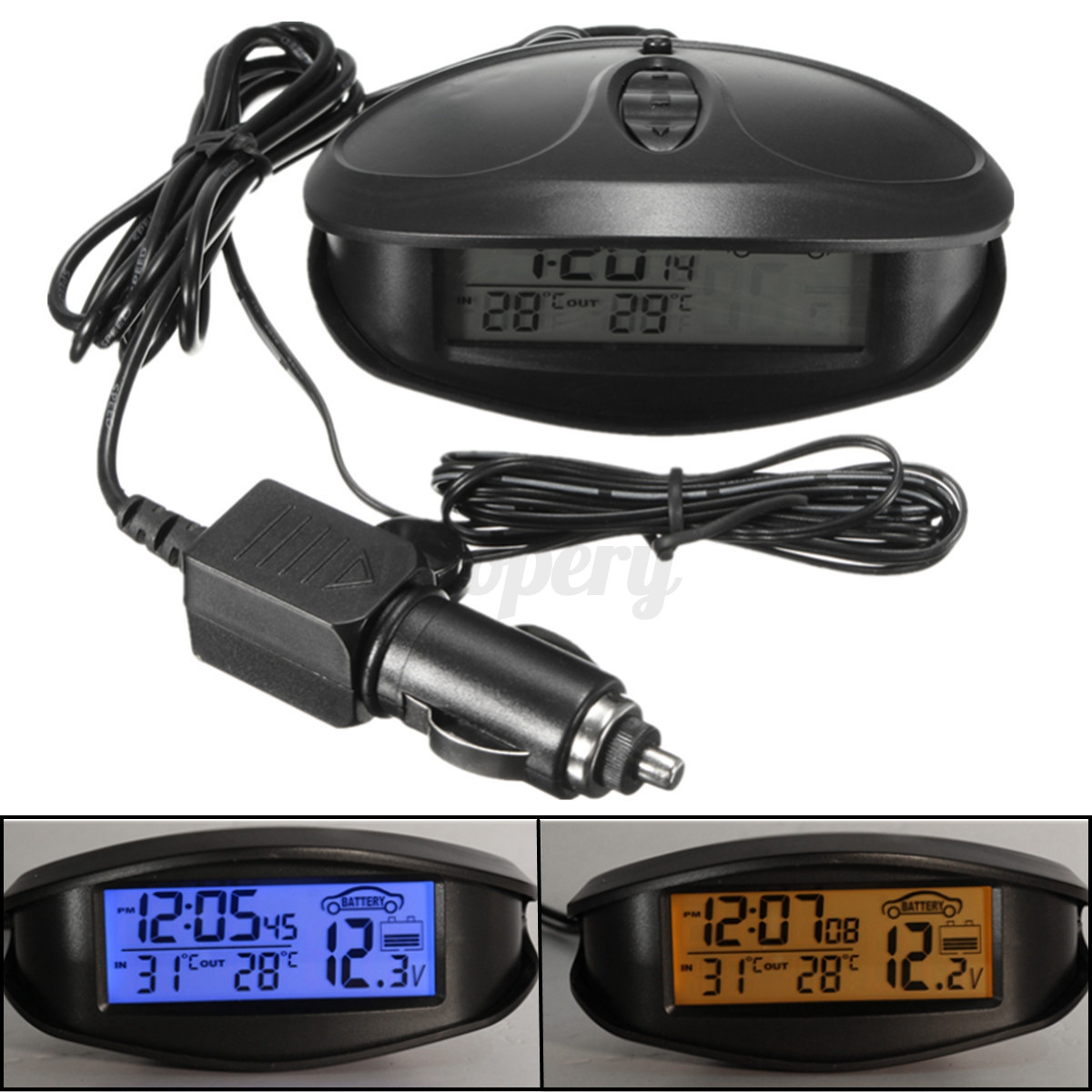

12V 24V Car LED Digital Time Clock Date Indoor Outdoor Temperature Thermometer

Specification:

100% brand new!!!
Shell Color: Black
Material: Plasitc
Diaplay Color: Blue/Orange

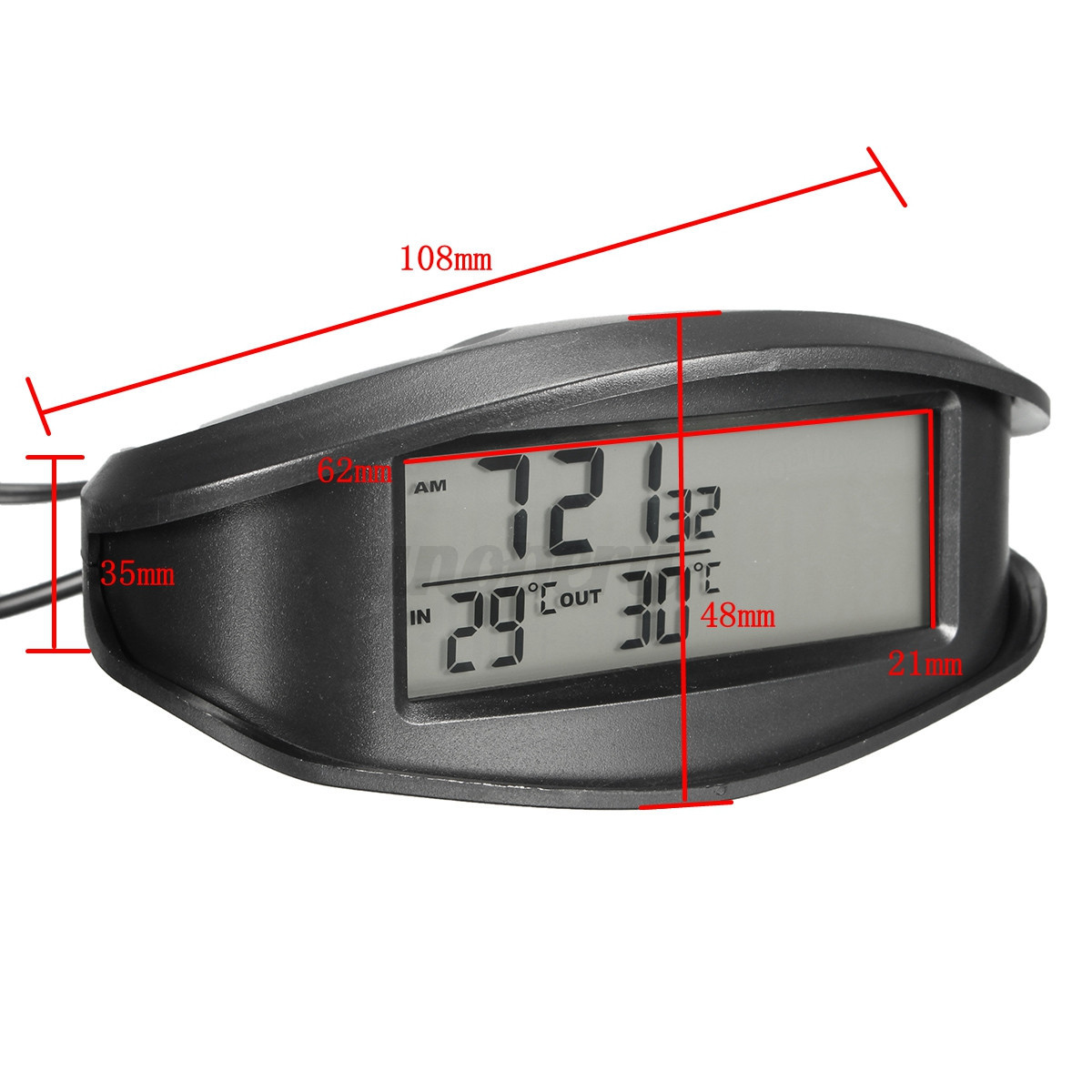

Size: As picture shown
Package box size: 143mm(H) x 102mm(L) x 100mm(W)
Working Voltage: 12/24V
Measuring Range: -20℃~70℃（Indoor Temperature）/ -50℃~70℃（Outdoor Temperature）/ Voltmeter: 9 ~ 18V DC

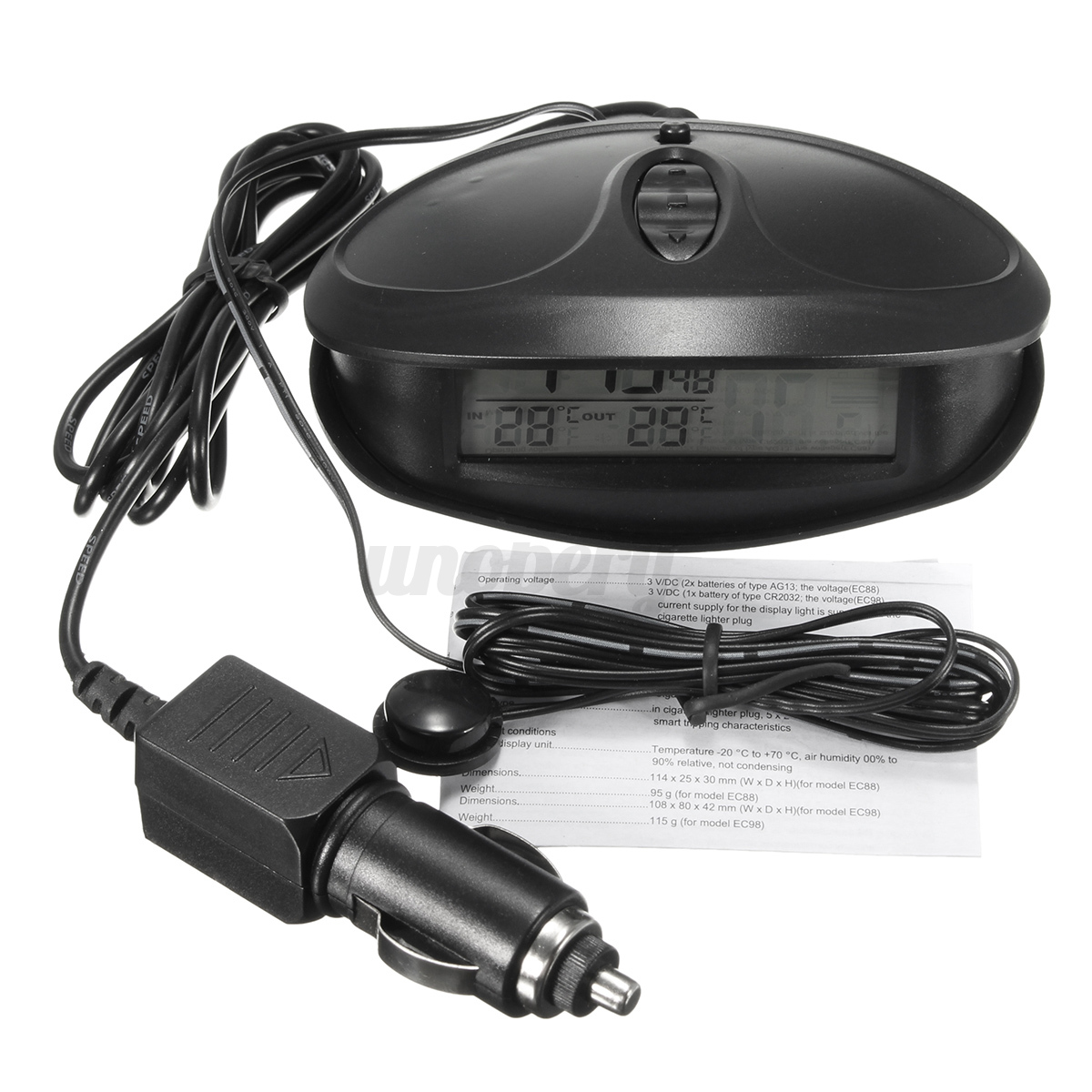

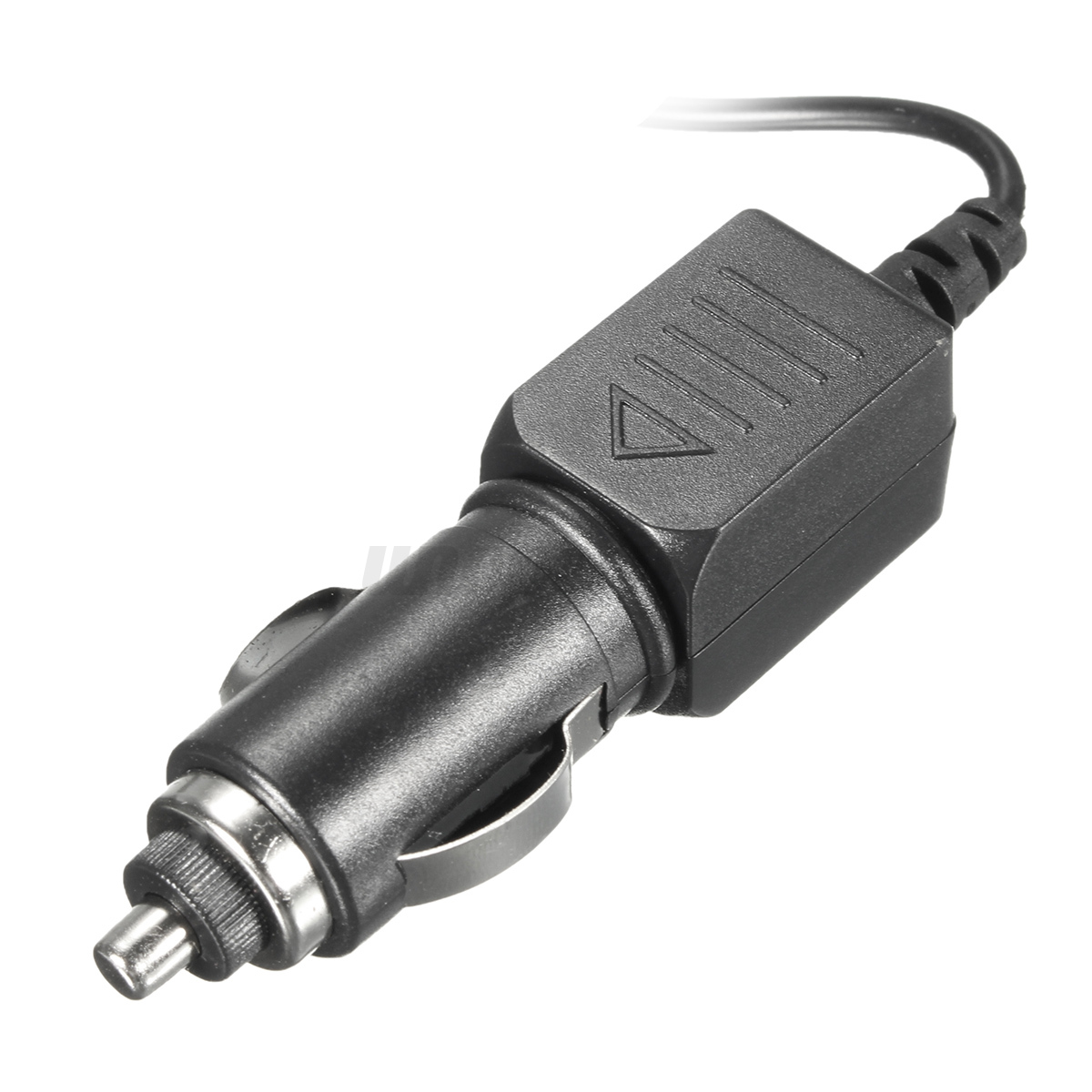

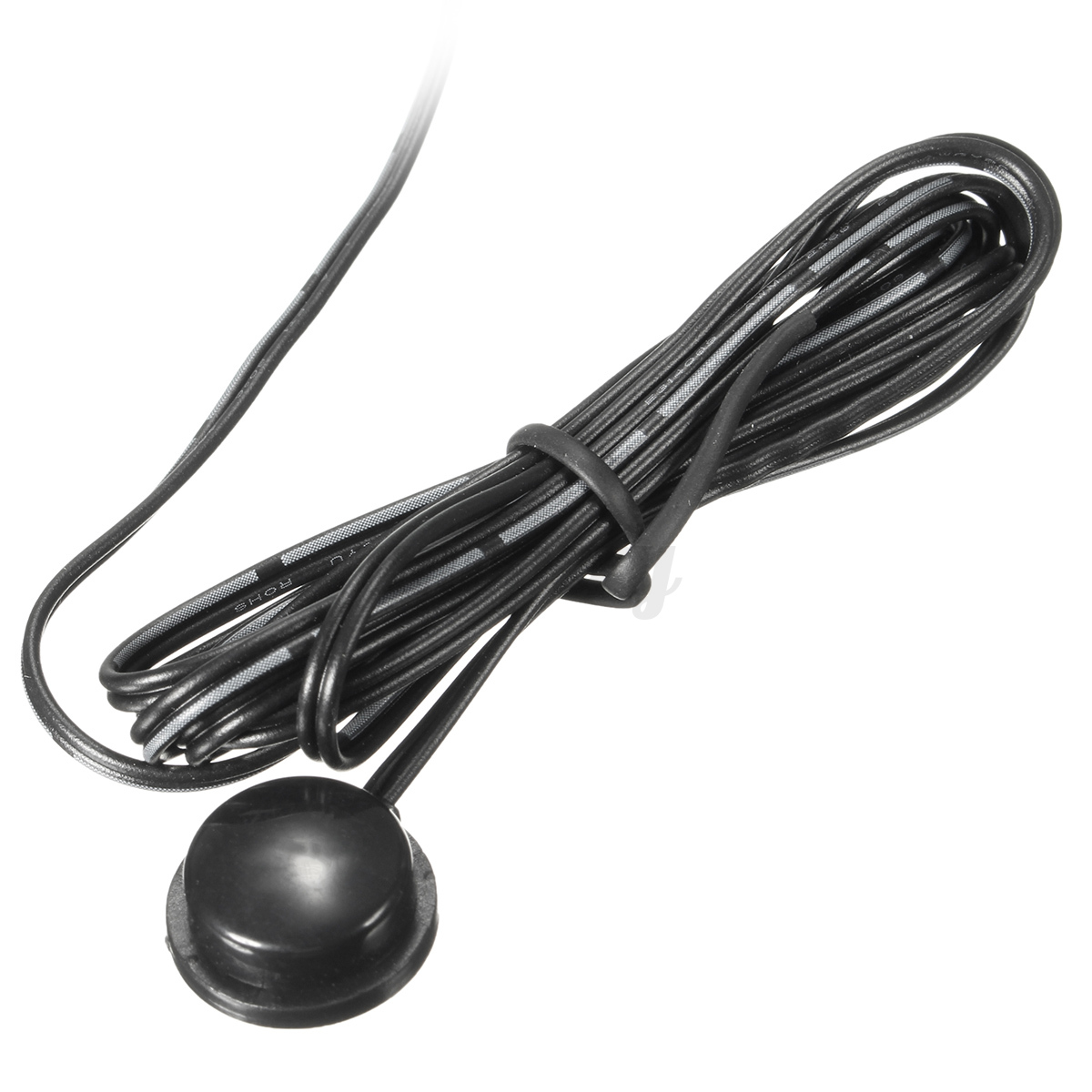

Cable Length: Outdoor sensor - approx. 145cm / Cigarette Lighter Plug - approx. 150cm
Ambient conditions for the display unit:
- temperature: -20℃~70℃
- air humidity: 00% ~ 90% relative, not condensing

Features:

- Indoor and outdoor temperature display
- Icing alarm display will turn on as temperature lower -1~4℃
- 12/24 hour format display
- Year/month/date display
- Inspect and display real time automobile storage battery voltage

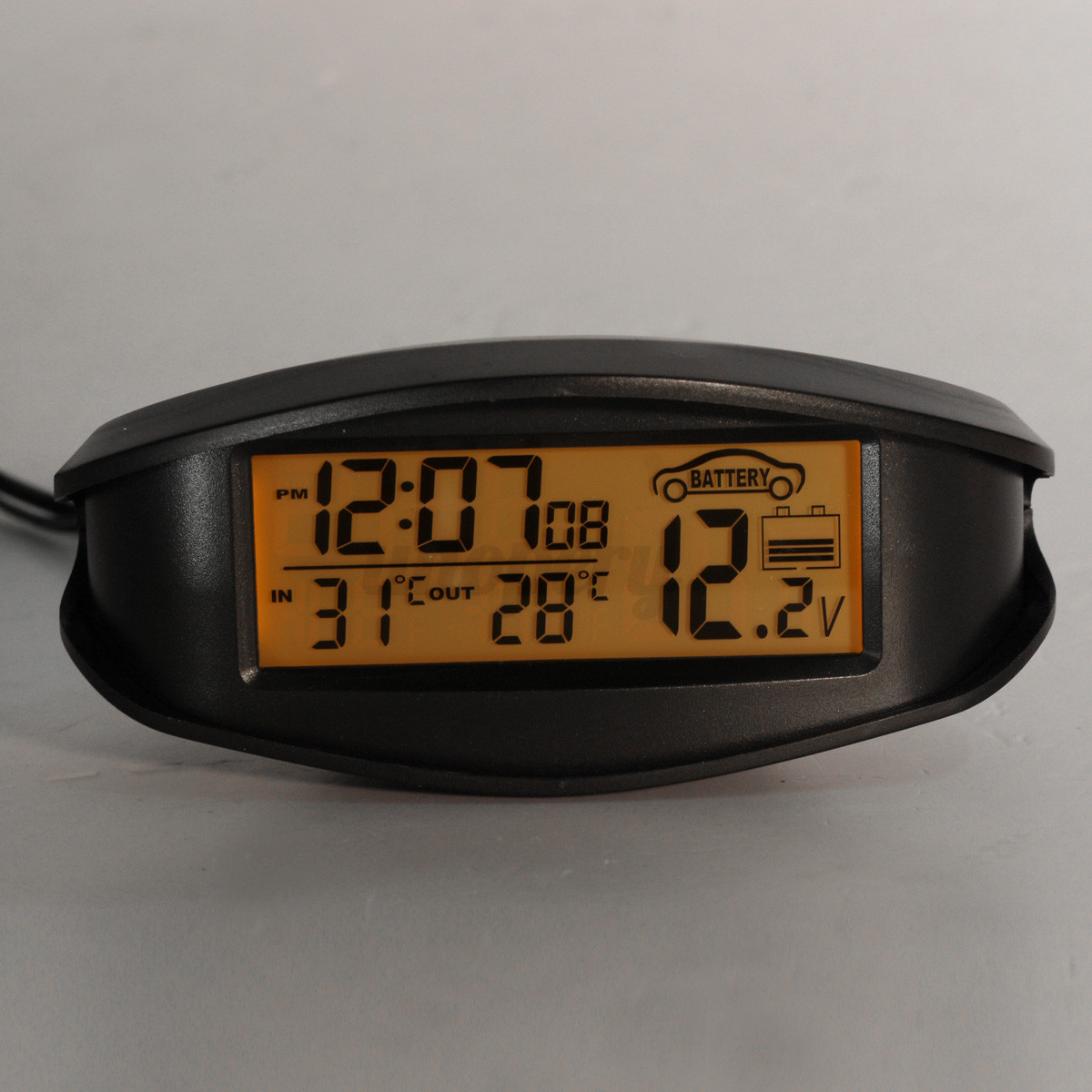

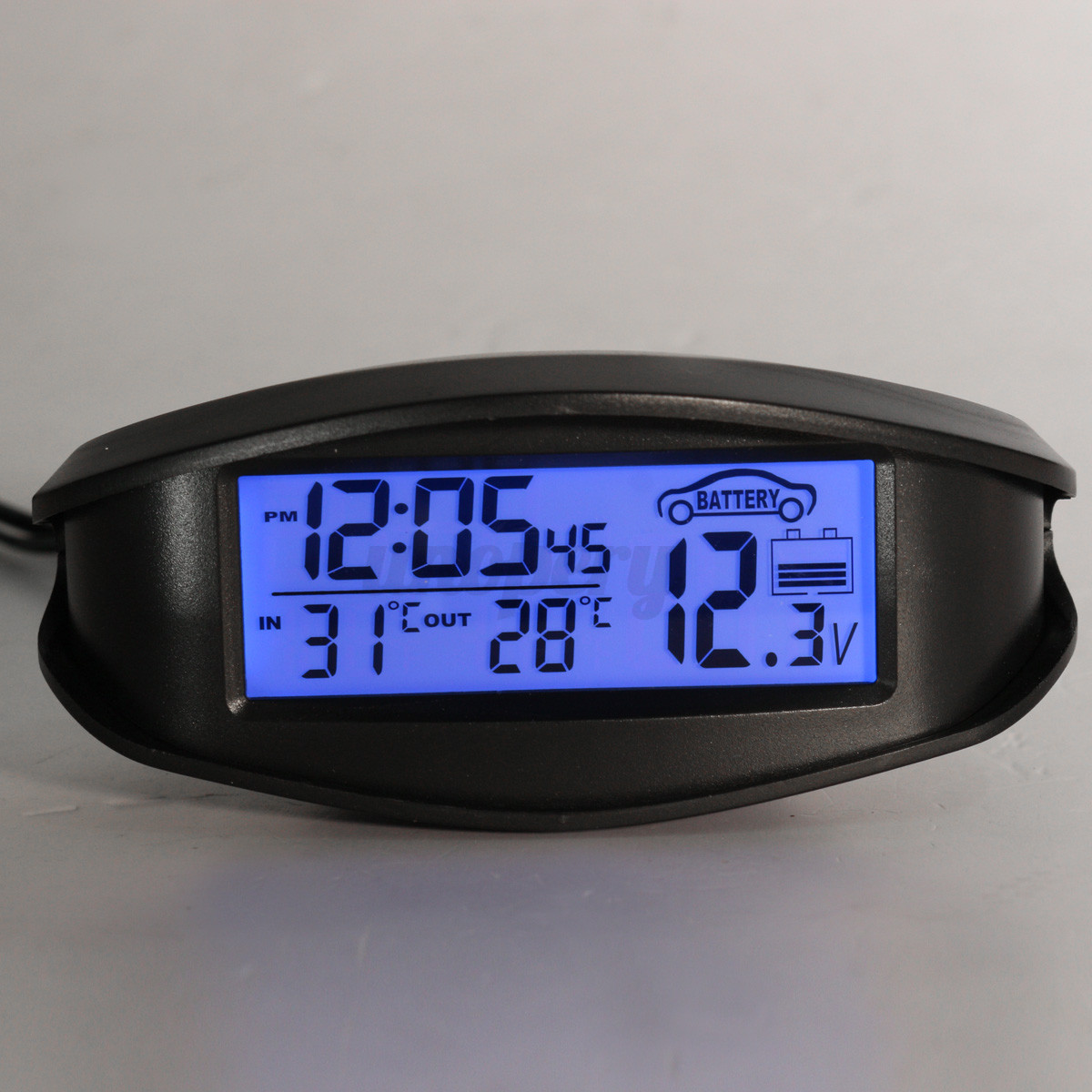

- Orange and blue backlight is shiftable

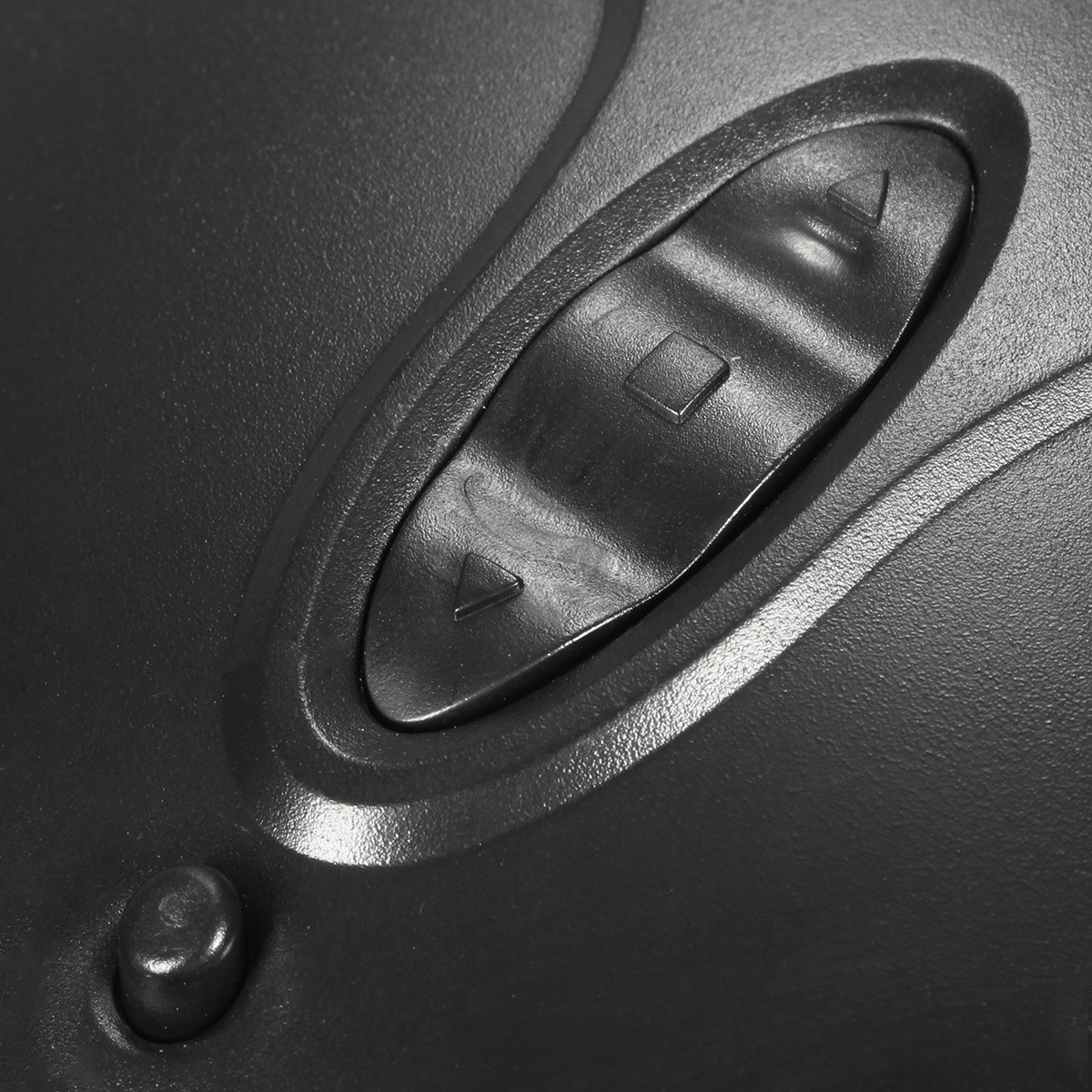

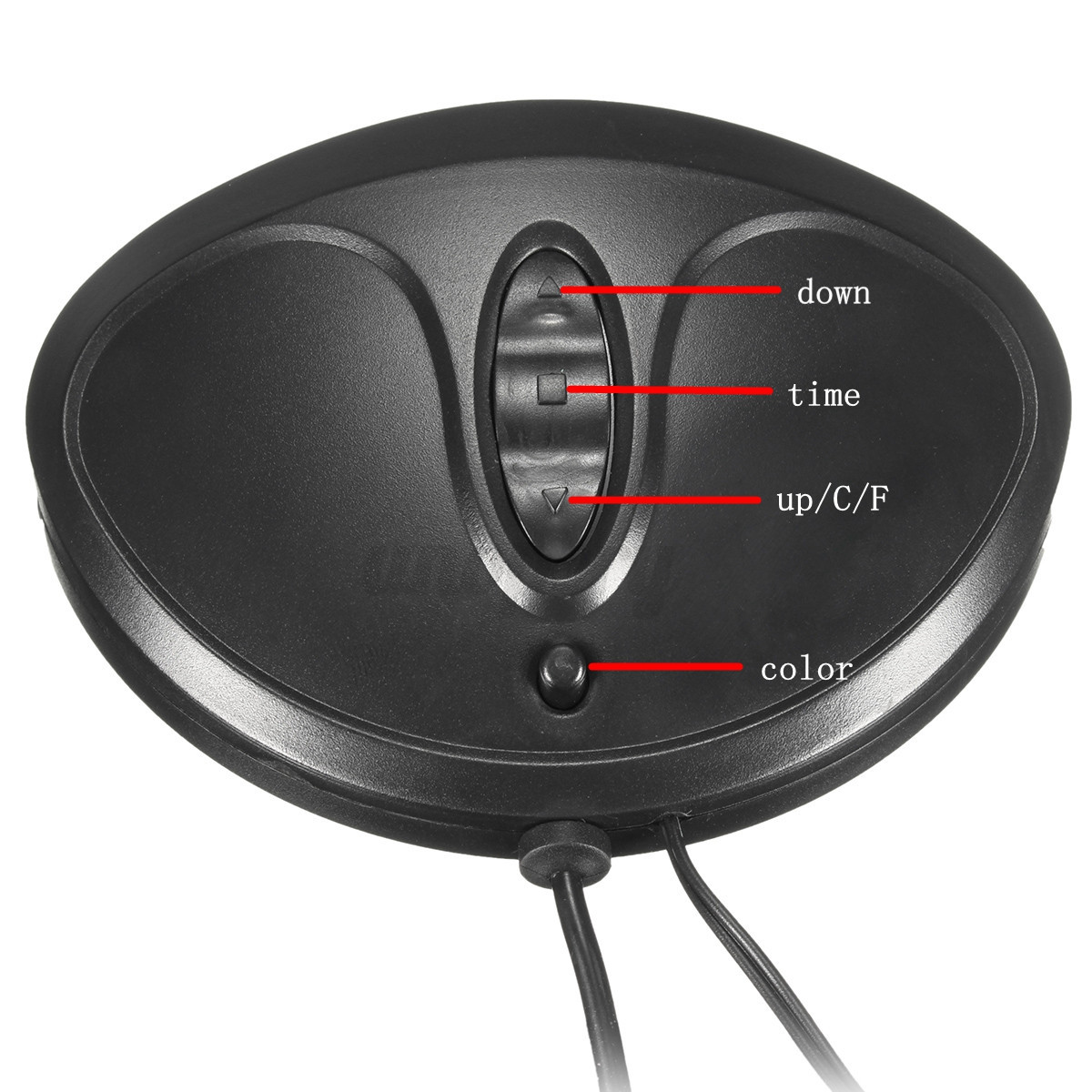

Button Function:

1. Basic display
- The display appears after the battery is inserted.

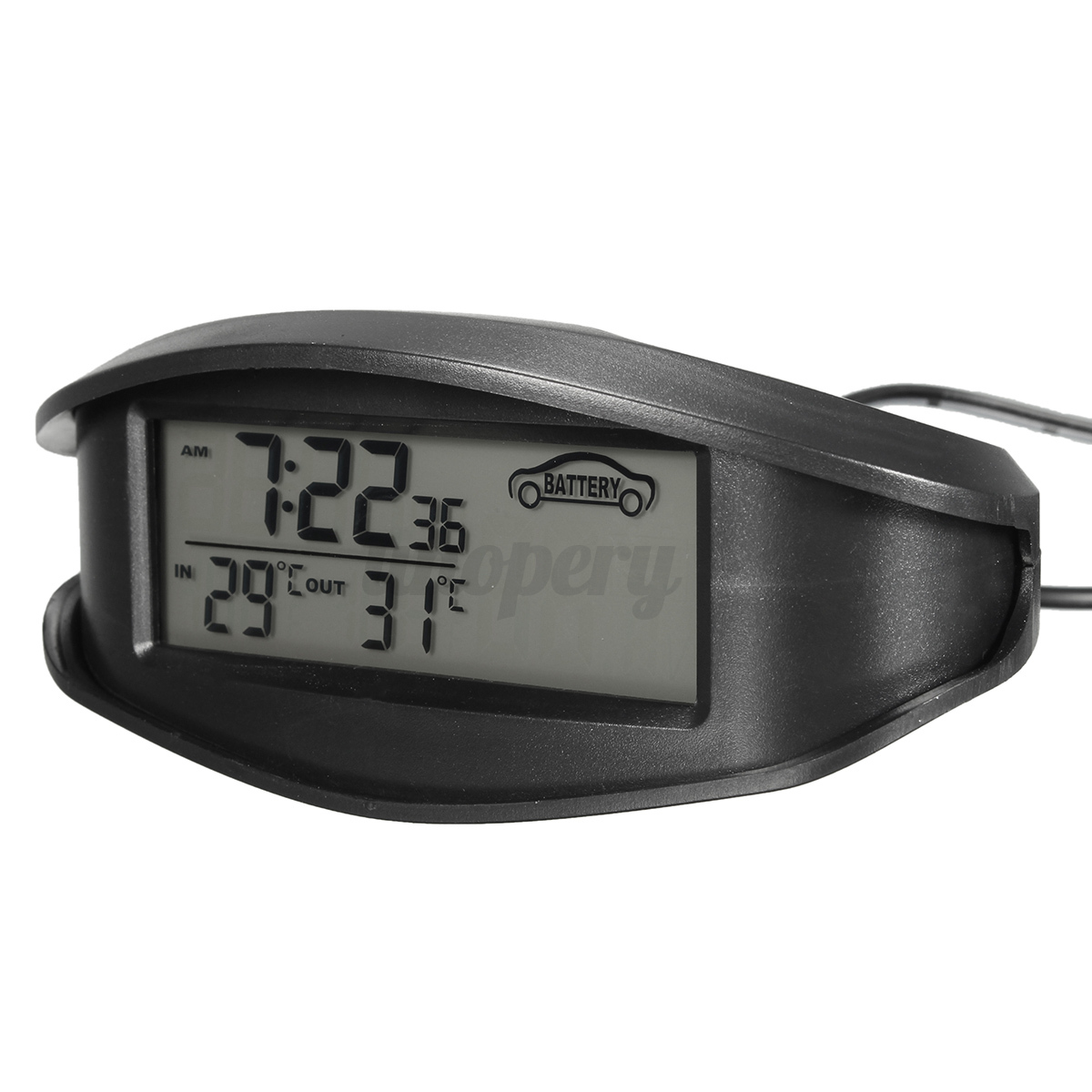

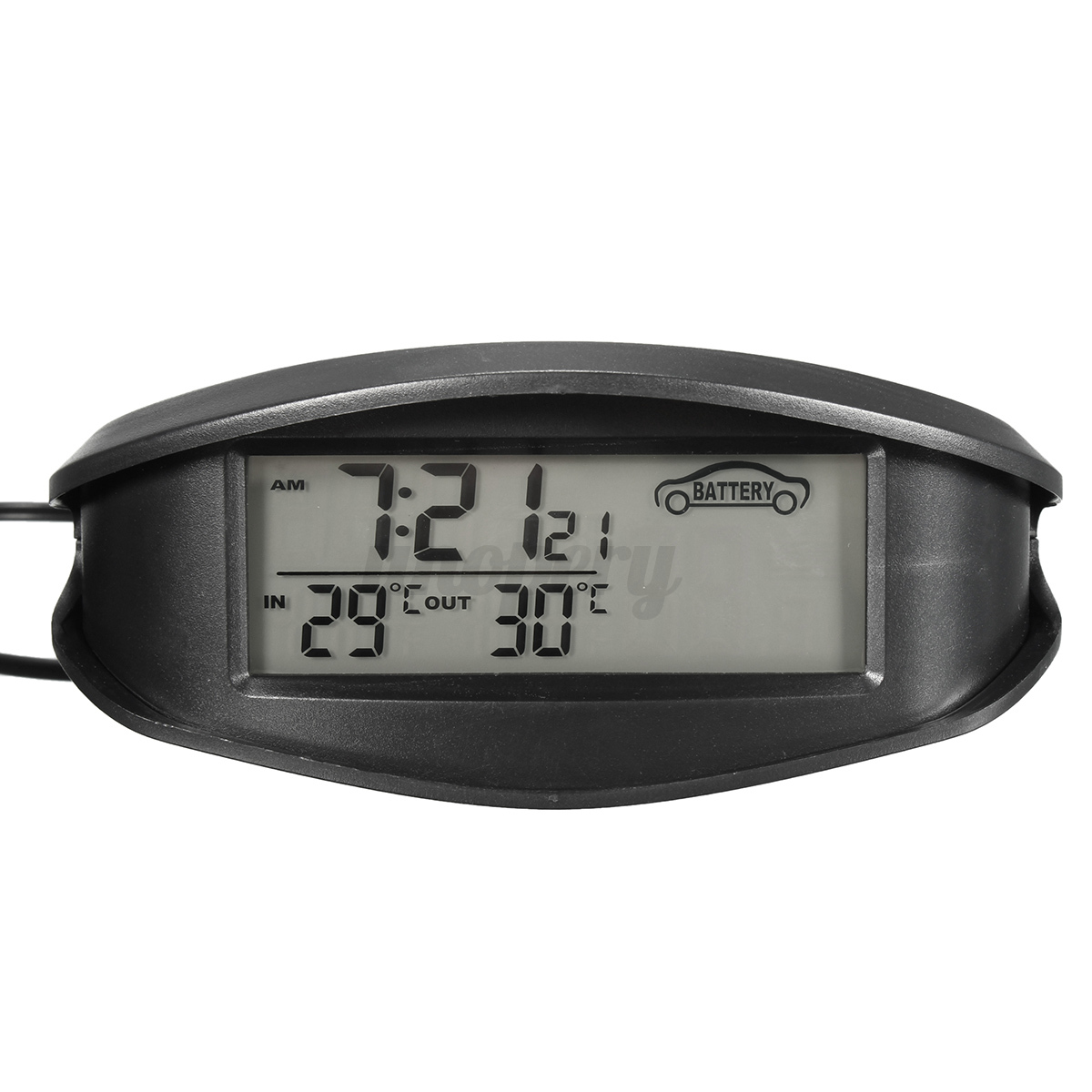

- In the left of the display, you can find the time and next to it the inside temperature ("IN" and outside temperature("OUT").
- The voltage at the right edge of the display is only shown when the cigarette lighter plug is inserted into a corresponding socket of the vehicle and a voltage is present.
2. Setting the alarm
- Press and hold the "TIME" button for about 3 seconds and the "12H" or "24H" display for the 12 or 24-hour mode will flash.
- Briefly press the "TIME" button, the seconds of the alarm time flash. Briefly press the "UP" or "DOWN" button to reset the seconds to "00".
- Briefly press the "TIME" button and the hours of the alarm time will flash; set them using the "UP" or "DOWN" button.
- By briefly pree the "TIME" button, you can now switch to setting the minutes, year, month and date. Settings are made with the "UP" or "DOWN" button.
- Once the date is set and you briefly press "TIME" button, the settings are saved and the setting mode is closed.
3. Toggling time/date
- Briefly press the "TIME" button and the month and date will be shown in the display.
To display the time again, briefly press the "TIMe" button again or wait for 10 seconds.
4. Toggling temperature
- Briefly pree the "℃/℉" button to switch between ℃ and ℉
5. Changing the color of the background light
- The color of the background light can be toggled between orange and blue to press the "Color" button.
6. Frost alarm
- Keep the "DOWN" button pressed for 3 seconds to switch the frost alarm on or off. A snow-flake symbol appears above the outside temperature when the frost alarm is actived.
- If the frost alarm is actived, tthe snowflake symbol flashes if the outside temperature "OUT" is between -1℃ and 4℃

Note:

1. (IMPORTANT) Instruction is Included. Professional Installation Is Highly Recommended！
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

Package included；

1 x Indoor/Outdoor temperature
1 x CR2032 battery

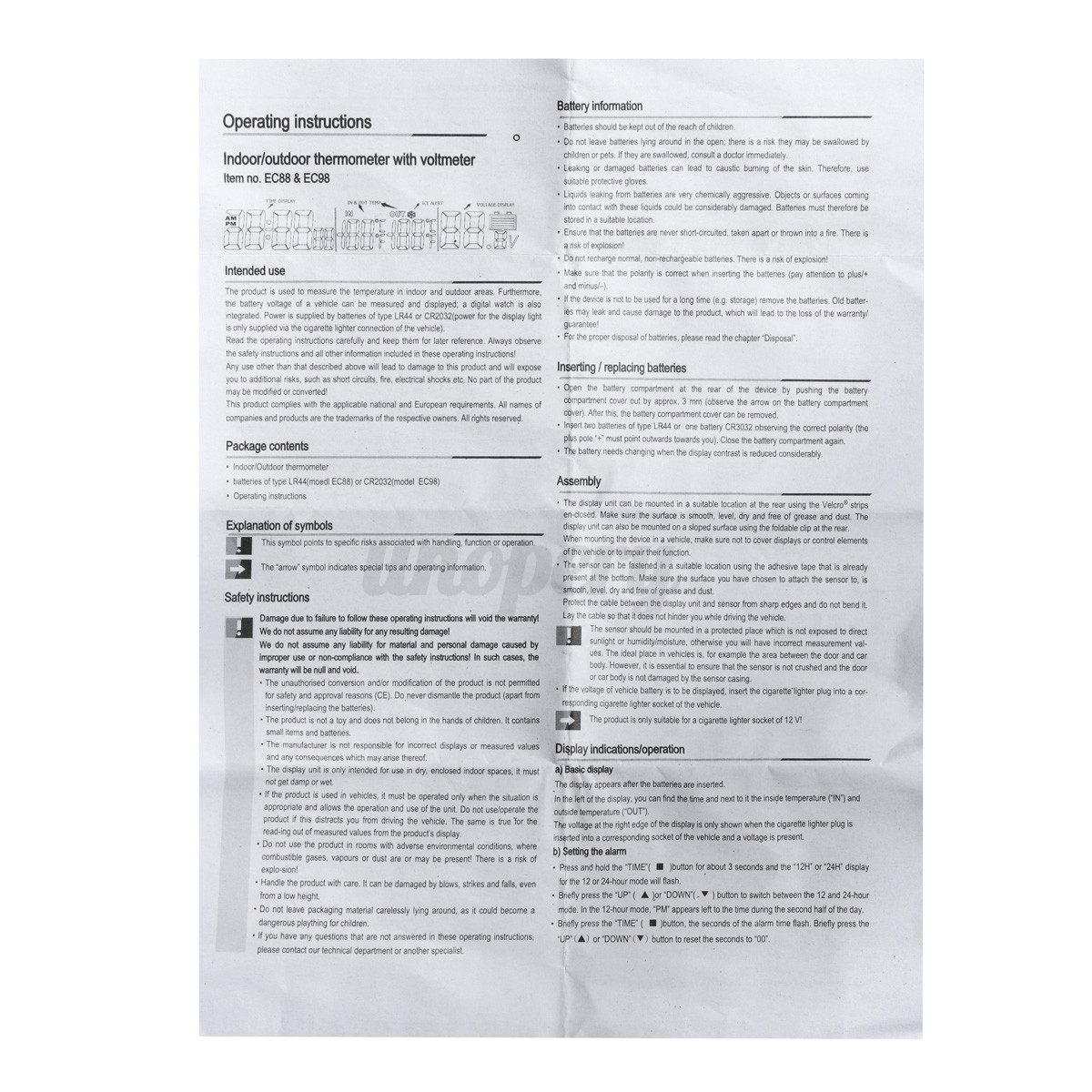

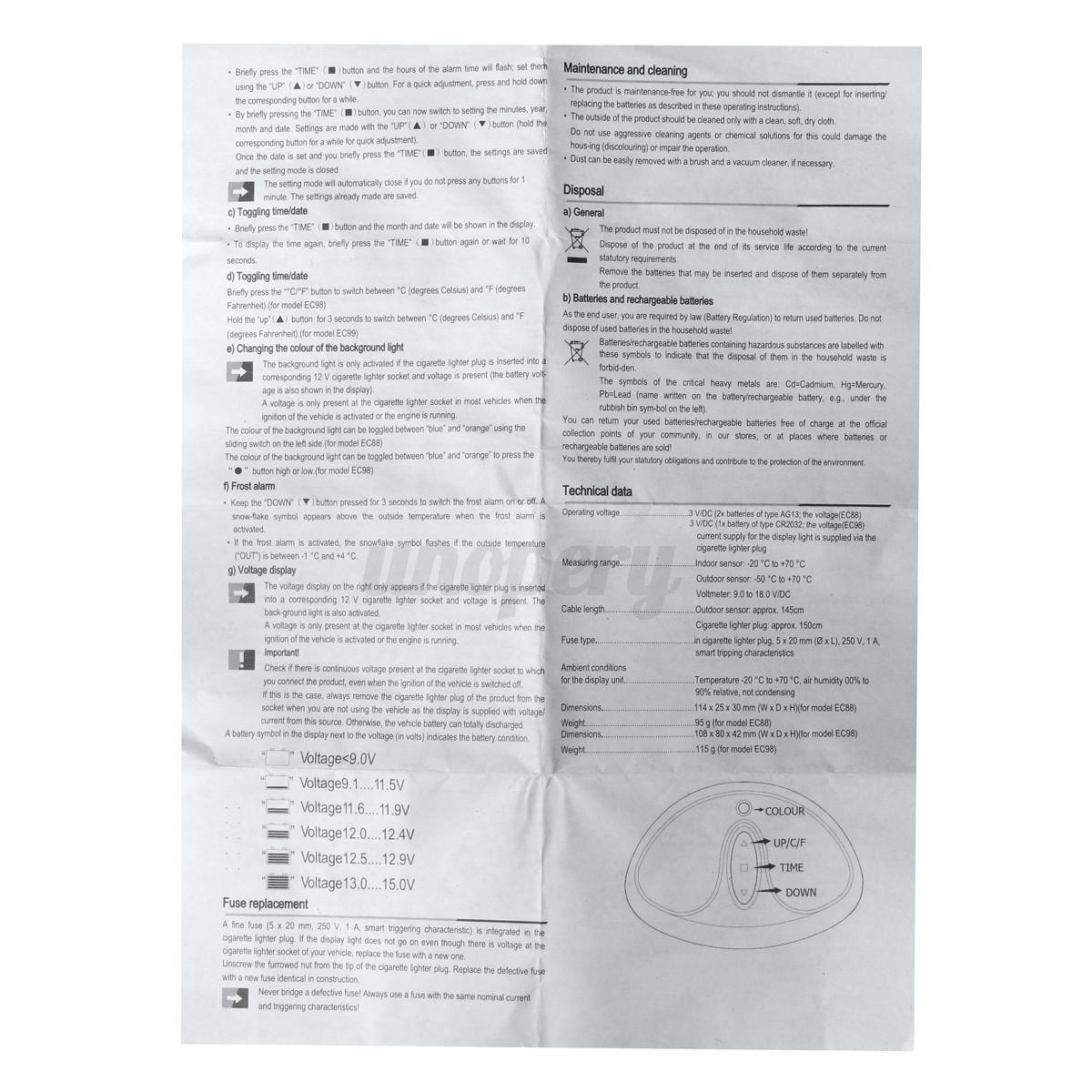

1 x English operating instructions
