- Bore (in)
| 4.165 in. | - Bore (mm)
| 105.791mm | - Compression Distance (in)
| 1.425 in. | - File Fit
| Yes | - Gapless
| No | - Oil Ring Material
| Stainless steel | - Oil Ring Tension
| Standard | - Oil Ring Thickness
| 3.0mm | - Pin Diameter (in)
| 0.927 in. | - Piston Head Volume (cc)
| +5.00cc | - Piston Material
| Forged aluminum | - Piston Style
| Flat top, with two valve reliefs | - Quantity
| Sold as a kit. | - Second Ring Facing Material
| Cast iron | - Second Ring Material
| Iron | - Second Ring Thickness
| 1.5mm | - Top Ring Facing Material
| Plasma-moly | - Top Ring Material
| Ductile iron | - Top Ring Thickness
| 1.5mm | - Wrist Pin Style
| Press-fit or floating |
|
This product ships directly from the manufacturer.

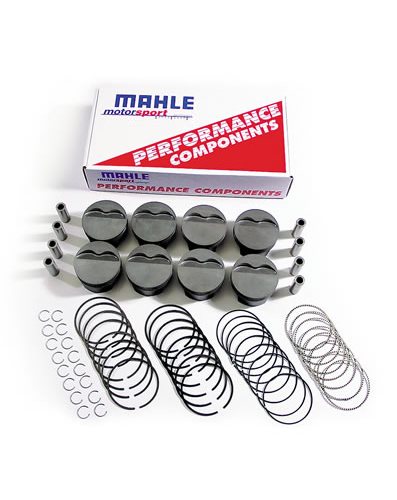

Image is a representation of this item. Actual item may vary.
Summit Racing Part Number:
MLE-SBC425165F05
