For Honda Airwave 2-point Solid Front Strut Bar Ultra Racing on 2040-parts.com

    IMPROVE YOUR CAR HANDLING!

Application

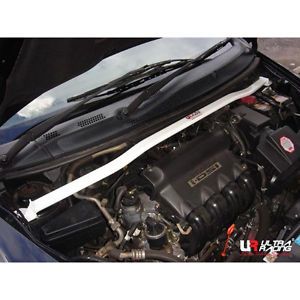

ULTRA RACING HONDA AIRWAVE 2-POINT SOLID FRONT STRUT BAR (UR-TW2-198)

Features:

Made of high quality steel, provides more strength

Extra thickness of bracket and tubes to maintain constant geometry at all times

Improve handling, stability at high speed and cornering, hence safer driving

Minimize the weight transfer of the vehicle body, better traction during cornering

Item Application:　HONDA AIRWAVE

*Is there a need to have our vehicle chassis strengthened?

The chassis of the car is the part which experiences the most of the abuse from the driver. It is particularly due to the weight transfer of the vehicle body during fast cornering, hard braking or hard acceleration. In some instances, the weight transfer during cornering may cause one side of the vehicle to experience as much as 3 times more force than the other side of the vehicle, causing enormous chassis flex/ vehicle body deformity and twist, consequently causing tires to lose grip. Deformity and twisting of the vehicle chassis during cornering may cause negative handling traits such as understeering and oversteering.

*What is understeering and oversteering?

*Front wheels lose their traction and cause the        *Rear tires lose grip and causing the rear end

 car to go wide. Understeer can be corrected by        of the vehical slides out. Oversteer can be corrected

stiffeningthe vehicle's rear chassis.                             by stiffening the vehical's front chassis.

*Material Specification & Design

Every materials used are carefully selected to ensure the best performance and safety. The brackets are made of 4mm to 5mm steel plates, while the hollow steel tubes and oval tubes are of 1.2mm to 1.6mm thickness. These materials are selected to ensure the bars are rigid and strong to maintain constant geometry at all times, yet safe enough to crumble during an impact for safety reason.

*Why we use steel instead of aluminum?

First, steel is stronger than aluminum for the same size and thickness. In order for aluminum alloys to be at least the same strength as steel, it has to be at least double the thickness (steel 4mm = aluminum 8mm). When that happens, weight saving is not so apparent anymore. Of course there are also exotic materials and alloys that can match the strengths of steel, but the cost are astronomically high and therefore not very cost effective to bring into mass production.

All our raw materials has been made and tested with satisfactory result.

There are various types of strut bars

*-FRONT STRUT BARS

*-REAR STRUT BAR & REAR UPPER BAR

Mounted at rear section of the car chassis (boot). Similar to the function of the front strut bar. The rear strut bar is use to support the rear section of the chassis, so that the force generated during hard braking and driving can be reduced

*-SIDE FENDER BAR

InInstalled at the left and right side of the vehicle wheel arch or fender. Fender bars can give extra support and strength to the chassis especially during cornering.

*-ANTI-ROLL BAR / SWAY BARfont>

*WHY ULTRA RACING?

1.Malaysia leading multi points strut bar manufacturer
　

Established in year 2002, it is undeniable that Ultra Racing is the leading company which research and contrive elevated quality chassis strengthening bars and today, Ultra Racing has the most immense facilities to indulge with extreme high demand for various types of vehicle models in the market.

2.Quality Assured strut bar
Ultra Racing is the only vehicle chassis strengthening bars manufacturer in Malaysia which has acquired the ISO 9001:2008 reward. With such achievement, Ultra Racing is able to deliver further assurance to all customers worldwide.

3.Award winning chassis strengthening components manufacture

-In year 2007, Ultra Racing has been awarded as Super Excellent Brand.
-In year 2009/2010, Ultra Racing has been awarded with Asia Pacific Super Excellent Brand Top Golden Brand Products
-In year 2010, Ultra Racing has been awarded with SME 100 Fast Moving Company
These achievements represent an assurance like no other to Ultra Racing’s loyal customers which our competitor brands will never able to accomplish.

4.Invaluable asset which can never replaced by anything

Ultra Racing is able to provide life-time warranty which stands as a guarantee to customers upon their investment. Alternative trade in option also available for customers with a maximum value of 30% off the retail price of a new one which is applicable only for bar-to-bar basis.
