Remote Control Unit(optional) Function Introduction
BTA provides an extension slot for remote control, allows users to add a special remote control unit(not standard part,
needs to be purchased separately ). The remote control unit is integrated with Answer/Hang up button, previous track button
and next track button, able to achieve some functions that OEM car stereo can not do. Its operation is more intuitive
and convenient. The appearance and buttons function setting are as follows:

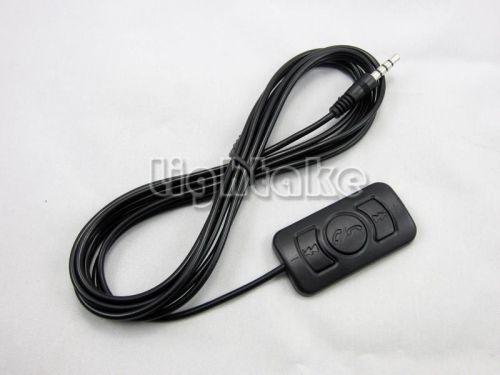

The remote control unit is small , flexible to install and layout in car. Directly plug it into remote control slot of BTA module,
and then put it on a proper position in car.
Answer/Make a call
1. When there is an incoming call, click Remote Control button Answer/Hang up to answer it or hold the Remote Control button
Answer/Hang up to reject it. Clicking remote button Answer/Hang up during conversation will hang up current call.
2. When Bluetooth connection is off, click Remote Control button Answer/Hang up and BTA will automatically connect to last-connected device.
3. When BTA and mobile phone are connected via Bluetooth, Double clicking Remote Control unit Answer/Hang up button will
achieve redialing last called phone number. When two mobile phones are connected to BTA via Bluetooth at same time,
only the mobile phone as main device is able to response to the command of redialing last called number.
4. No matter current Bluetooth device is connected successfully or not, hold Remote Control button Answer/Hang up for 5 seconds,
BTA will enter pairing status, at this time BTA is discoverable for other Bluetooth devices.
If Bluetooth connection is already successful, the former operation will disconnect current connection and BTA enters pairing status.
5. During conversation, if there is an incoming call from same mobile phone, the call tone will come out from car speakers
(If the mobile phone and operator supports), user can press Next Track button to hang up current call and answer the coming call.
If press Previous Track button, the first call can be reserved and the coming call will be answered.
If you want to switch back to the first call and reserve the second call, you can press again Previous Track button on remote control unit;
If you want to switch back to the first call and do not reserve the second call, you can press Next track button.
6. If there are two mobile phones both connected with BTA at same time, when the mobile A is under conversation and a call coming from mobile B,
user can press remote button Next Track to hang up current call and answer the coming call.
7. Hold Answer/Hang up button on remote control unit for 2 seconds during conversation, the call transfers from Bluetooth hands free to mobile phone private status.
Hold Answer/Hang up button on remote control unit for 2 seconds again, the call turns back to Bluetooth hands free again.
A2DP Music Playback
When mobile phone is under status of A2DP music playback, users can also operate mobile phone music via remote control unit, to achieve
Pause/Play, Prev/Next Track, Fast forward/backward functions. The detail functions are same as on original car stereo
1. Under A2DP music playback status, Press Answer/Hang up button on remote control unit achieves Pause/Play function.
2. Press Previous track button【 |<<】 or Next track button【 >>|】 achieves Previous Track or Next Track functions on mobile phone.
3. Holding Previous track button【|<<】 or Next track button【>>|】achieves Fast forward or backward functions on mobile phone.
