Seaflo Self-priming Gear Pump For Diesel Lubricant Viscous Liquids Oil Transfer on 2040-parts.com

US $129.99
Location:

厦门市, 福建省, China

厦门市, 福建省, China
Condition:New Brand:SEAFLO Certification:CE, ISO9001:2008, RoHS Manufacturer Part Number:SFGP1-032-003-01 Application:Diesel oil transfer,lubricant transfer,water trans Voltage:12V Theory:Electromagnetic Pump Flow Rate:3.2GPM/12.0LPM Structure:Gear Pump Amps:10 Max UPC:608912739591


SEAFLO Self-priming Gear Pump for Diesel Lubricant Viscous liquids Oil Transfer


Features & Benefits



Seamless Shell Design

Thermally Protected Motor

High Quality Efficient Motor

Self-priming

Stainless Steel Shaft

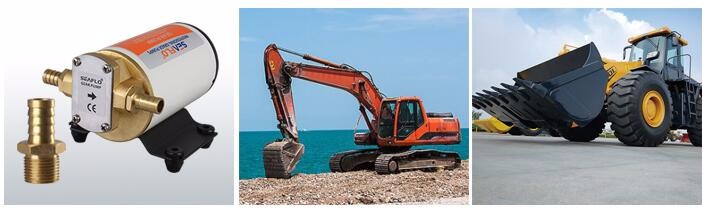

Typical Applications


Extreme duty

Transmission fluid

(Diesel, Lubricant and viscous liquids)

Inustrial use



g



Specifications


PUMP

Liquid Temperature

140°F (60°C) Max.

Priming Capabilities

Not needed flooded suction

Power

10 amps max current draw

Max Pressure

Not needed

Inlet/Outlet Ports

3/8" FNPT (9.52 mm)
thread fitting

Weight

5.46 lbs (2.48 kg)

MOTOR

Type

High quality seamless design
that is thermally protected

Leads

Wire leads

Temperature Limits

140°F (60°C) Max.

Duty Cycle

Intermittent

Voltage

12v


Technical Parameters

01


Standard pump configurations



Model

Voltage

GPM/LPM

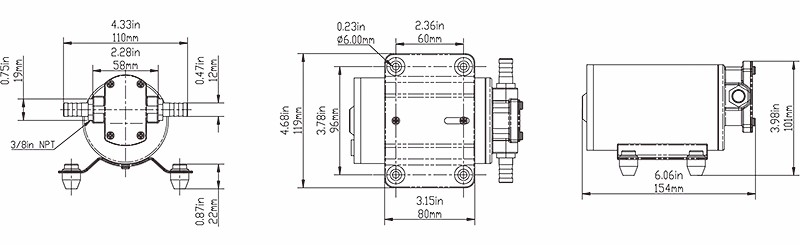

Dimensions

Impeller

Ports

Lead

Molded

Max Draw(A)

SFGP1-032-003-01

12V

3.2/12.0


7.68" x 5.12" x 4.25"
195 x 130 x 108mm

copper




3/8" FNPT

Yes

N/A

10.0




IMG_4763IMG_4725IMG_4735IMG_4762IMG_4818
