5pcs Stereo 50k Square Sealed Potentiometer Switch, Linear Hi-rel Qty:5 on 2040-parts.com
default, default, HK

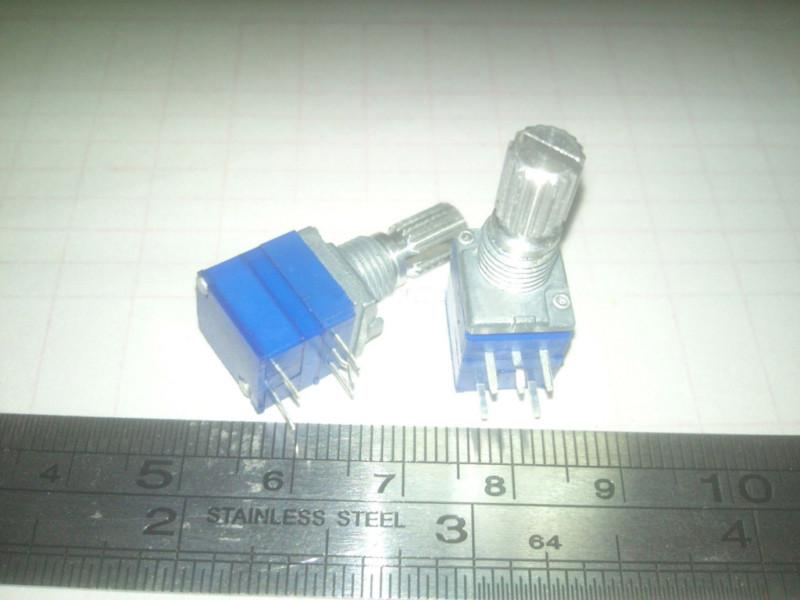

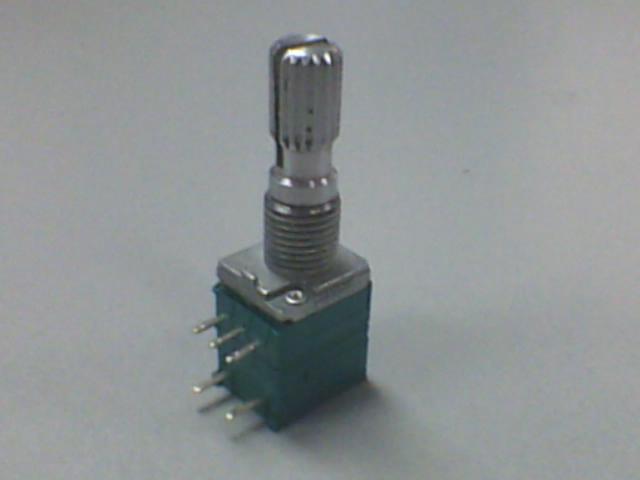

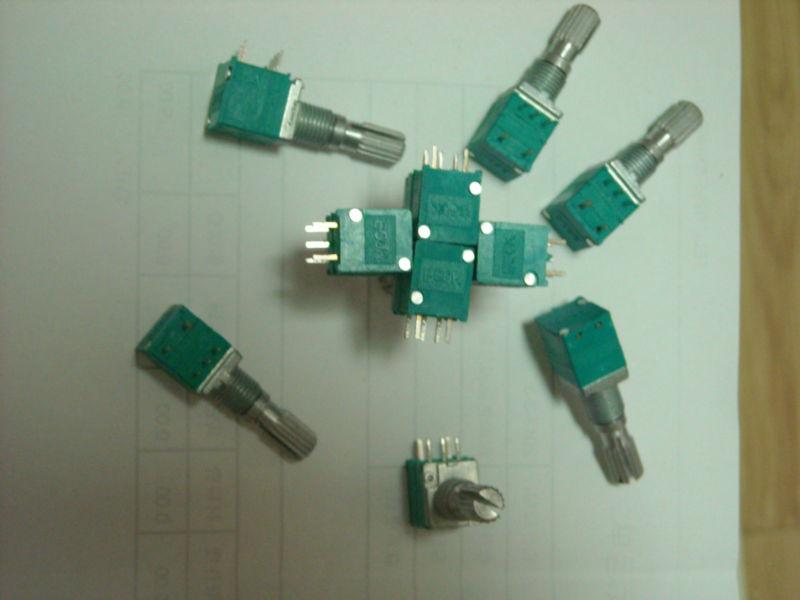

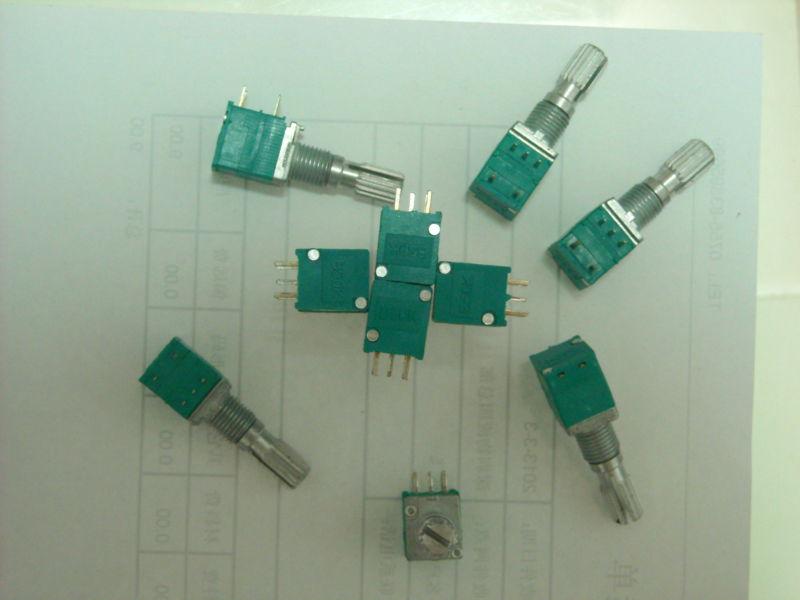

5 pcs 9mm Rotary Dual 50K High Quality Audio cermet switch Potentiometer
9mm (09-type) single-associated with the switch fully enclosed volume switch is mainly used for communications products, walkie-talkie, car amplifier, multimedia sound, smart home, home appliances, computer peripherals, sprayers, machinery and equipment, toys and other needs to adjust the resistancethe linear or through more regulation meet commissioning requirements. Product has good sealing, stable function, even feel torque, beautiful appearance, easy-to-use features.
Parameter:
Rotation stopper strength: 3Kgf.cm Min
Axis shaking degree: 0.6 * L/20mm pp Max (L refers to the installation plane to the distance of the handle end of the shaft)
Full slewing angle: 300 degrees
Turning moment :10-200 gf.cm)
The shaft push and pull strength :7-8Kgf. Cm Max.
Screw fastening strength: 7Kgf. Cm Min.
The switch forces :80-300gf. Cm;
Axial clearance: 0.4mm Max
Resistance Tolerance: +20% or +10%
Maximum working voltage: AC50V DC10V;
Insulation resistance: 100MΩ Min.at 250V DC
Withstanding Voltage: 1Minute at AC 300V
Synchronization error: +3 db at-40db to 0db
Sliding noise: less than 100mV
Switch Rated Power: 12DC 1A Max.
Initial contact resistance: less than 100 MΩ
Manual Soldering: 300 ℃ Max. 3S Max.
Operating temperature range: -30 ℃ to +60 ℃
Storage temperature range: -40 ℃ to +70 ℃
Switch Life: 30000 +200 Cycles
Package Included: will Safely in Bubble
