Quad / Split Screen

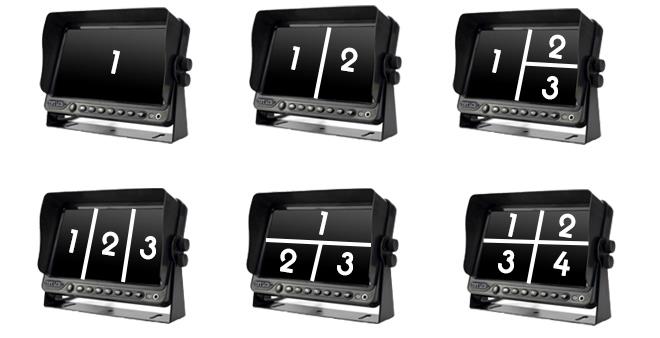

The monitor has 6 image models. It can show single, dual, triple, quad image if you switchover AV button (when connecting with 4 cameras). Ideal for 2 side view or any other view as well as rear view.

Power & AV Cable

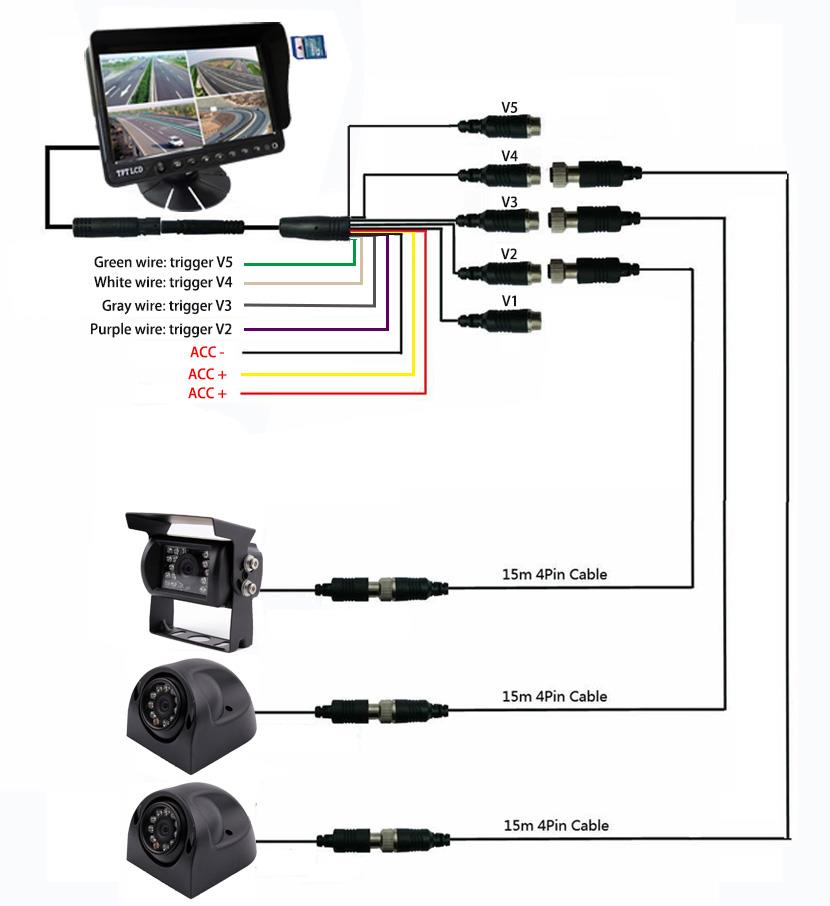

The power cable has 7 wires, their definition as follows:
Red wire: 12-32V
Yellow wire: ACC Power
Black wire: GND
Green wire(remark 1): trigger wire, control V5
Purple wire(remark 2): trigger wire, control V2
Gray wire(remark 3): trigger wire, control V3
White wire(remark 4): trigger wire, control V4

Please kindly note: please take the red wire and yellow wire together, and then connect them to the ACC power. This is important. Although the monitor can support 5 video inputs, but the DVR only record 4 camera video:V1, V2, V3 and V4.

Waterproof CCD Color Camera

ALL-Glass 120° Lens

All-glass lens, glass lens elements from 5 Piece. 120° Free viewing angle. When your used at high or low temperatures, plastic lens will deform, the image becomes blurred, but glass lens will not.

4Pin Connector easy to install

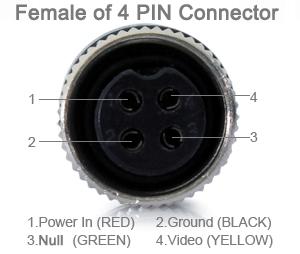

Cameras have a MALE 4Pin connector, the power wire and the video wire are all in it, so easy to install. Please see the pin configuration.

Non- mirrored image and Mirror image cameras

The cameras have two image model. One is mirror image, we also call it rear view camera, the other is non-mirror image, we also call it normal view camera or front view camera. Mirror image camera is used for reversing. And Non-mirror image is normally used for front view. Mirror image also usually is used for side view.

4Pin Extension Shield Cable

Optional Extra 5m(16ft), 10m(32ft), 15m(49ft) or 20m(65ft)

* Cable is include the power wire and AV wire in it. Need not add another power wire to the camera.
*It will shield vehicle's circuit interference better than normal AV cable.

Please kindly NOTE B : We will send 20m(66ft) as default, if need other length cable, please send a message to us or write it in the comment when you order.
