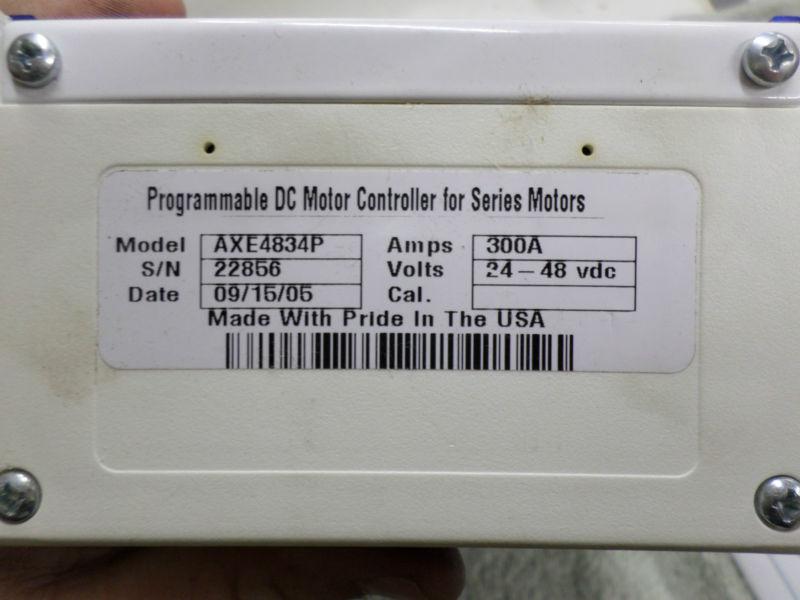

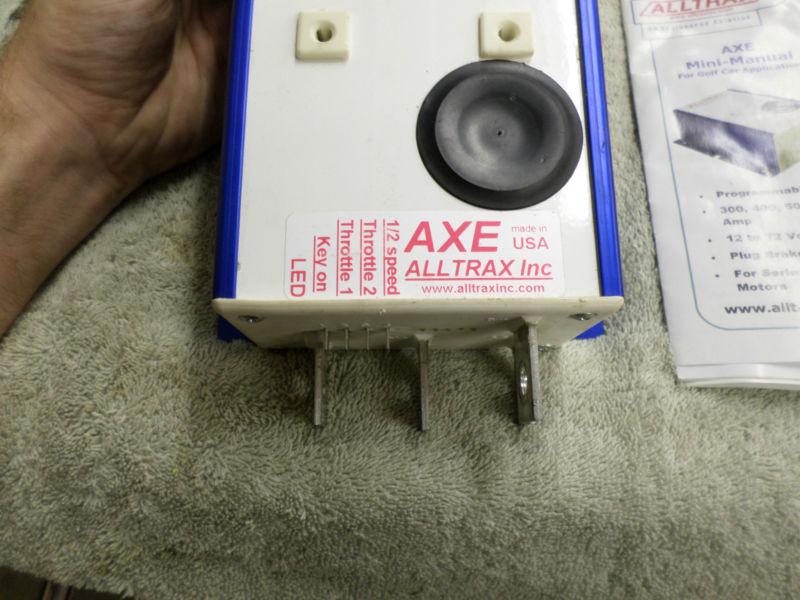

Alltrax Axe 4834 300 Amp Motor Controller on 2040-parts.com

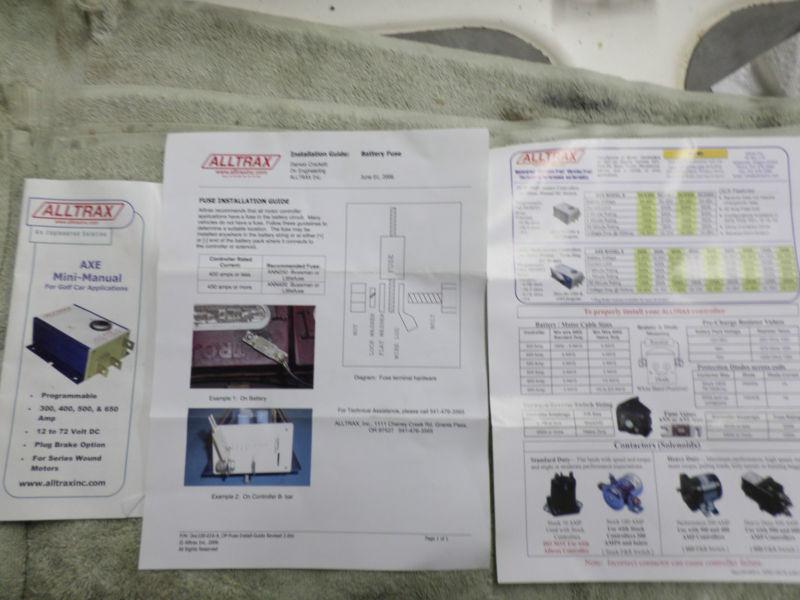

Alltrax programmable electric motor controller. Part of an estate sale, I do not run electric golf carts so I have no use for this. Comes with controller, the cable to connect it to a PC, and some manuals..

The following is data I found online, I presume it to be correct but please verify fitment...

will work with many different carts:
•E-Z-GO ◦1994 and older Marathon Car with 0-5k throttle
◦1995 and newer Medalist & TXT with ITS throttle

•Club Car ◦1996 and older with 0-5k throttle
◦1993 and newer with 5k-0 three wire throttle

• Yamaha ◦G-8 wih 0-5k throttle
◦1992 to1994 G-9 with 0-1k throttle
◦G-14 / G-16 with 0-1k throttle

•Taylor Dunn ◦6-10.5V with throttle & plug brake
◦0-5k with 3 wire throttle


The AXE product line is used with SERIES Wound Motors. These units drive golf
cars, scissors lifts, boom trucks, Neighborhood electric vehicles, and a variety of other
applications.

Features include:
•Programmable via RS232 comm port using PC or Laptop

•Integrated anodized heat-sink with multi bolt pattern for flexibility

•Fully encapsulated epoxy fill - environmentally rugged design

•Available in 300 through 650 amp Performance versions

•Advanced MOSFET power transistor design for excellent efficiency
and power transfer

•1/2 Speed reverse option and "Plug Brake" options available
•Type: DC "SERIES WOUND" motor controller
Undervoltage cutback: adjustable, 16-30 VDC
Overvoltage shutdown: adjustable,
◦30-60 VDC (48V models) (60VDC MAX)


•Operating Frequency: 18kHz

•Control voltage range; Key, Throttle and Reverse inputs:

•Reverse Horn Output: 50mA sink max

•Standby Current (Powered Up): < 35mA

•Throttle Input:

◦ITS (inductive)

◦Resistive 0-5K ohm (+/-10%)

◦5K-0 ohm (+/-10%)

◦0-5Volt

◦6-10Volt

•Operating Temperature: -25C to 75C, 95C shutdown

•Adjustments via Controller Pro software:

◦Throttle acceleration / deceleration rate and map profile

◦Armature current limit

◦Brake current limit

◦Under / Over voltage shutdown

◦Half Speed Reverse

◦High Pedal Disable

◦Plug Brake
•Ratings ◦2 min 300 amp
◦5 min 200 amp
◦1 hour 135 amp
