Beyerdynamic Hs 800 Danr Aviation Headset on 2040-parts.com
Fort Lauderdale, Florida, US

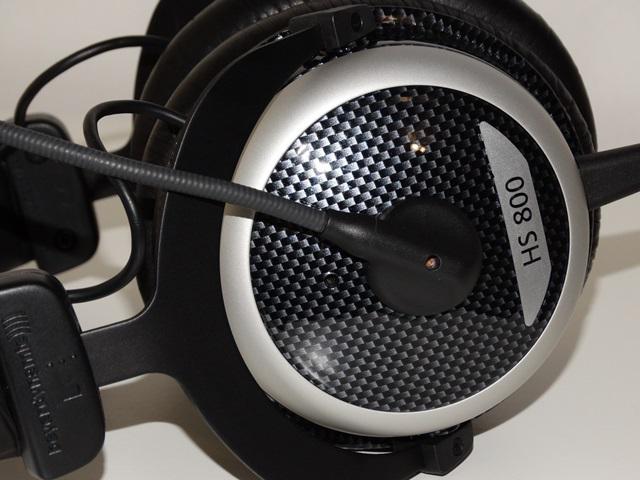

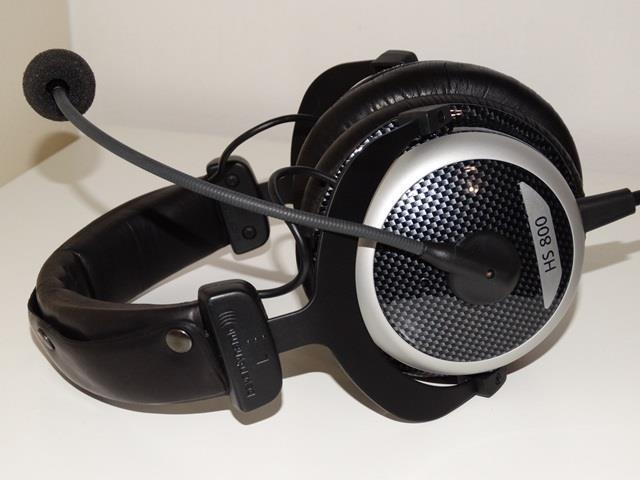

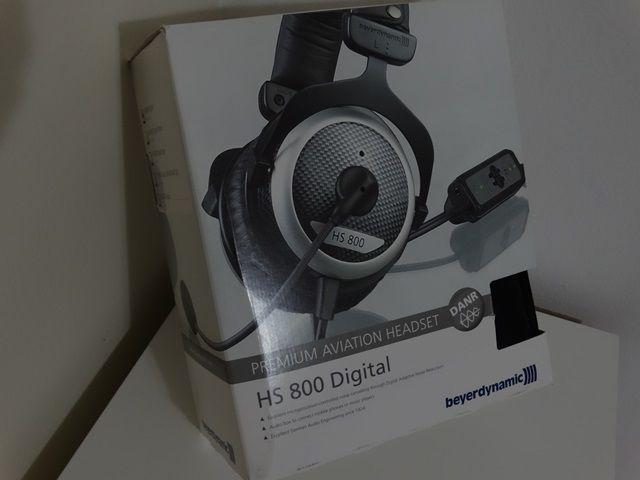

beyerdynamic HS 800 DANR Digital Noise Cancelling Aviation Headset
! !Handmade in Germany!

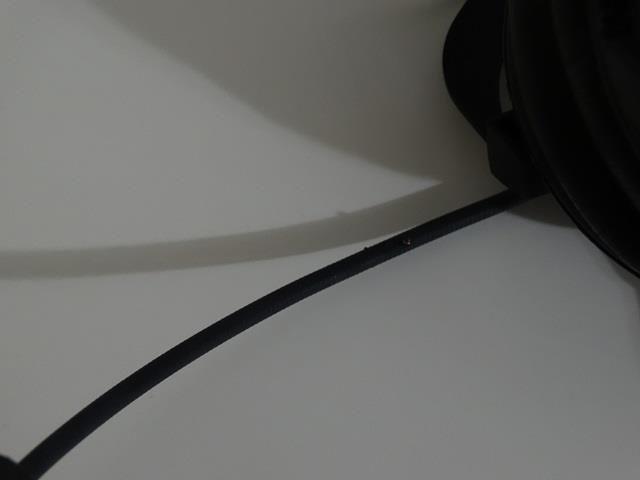

!!!Real Pictures!!!!

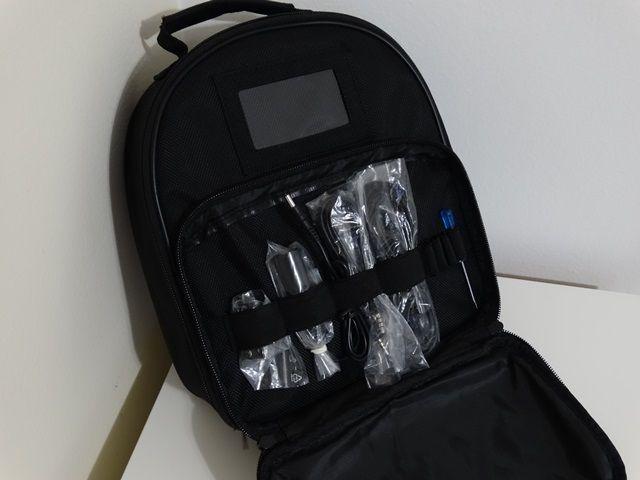

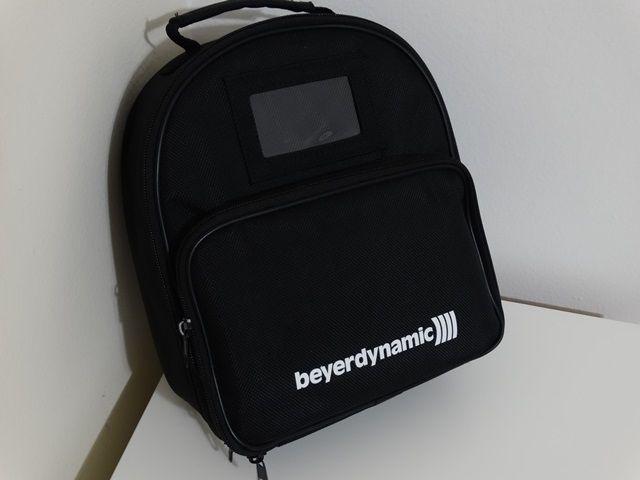

FEATURES ▲ Outstanding ambient noise attenuation due to Digital Adaptive Noise Reduction (DANR) ▲ Ear pads with extra soft leather and viscoelastic filling ▲ Replaceable leather headband with fontanelle recess ▲ Audio box to connect iPhone, iPad, Blackberry, HTC, compatible mobile phones or music players (supplied with connecting cable) Adapters for other mobile phone models: see accessories ▲ Powered by two mignon batteries or via the on-board power supply system (12 - 36 V) with the supplied 3-pin male XLR cable (HS 800 Digital) – delivery includes 3-pin socket ▲ Auto Mute – automatic volume reduction (muting) of phone or music player when intercom signals are received (selectable function) ▲ Automatic switch-off function when not in use ▲ Balanced sound with reproduction precision for best intelligibility of speech and excellent sound ▲ Mono/Stereo selection switch ▲ Noise-compensated microphone with adjustable gain ▲ Integrated dual volume control ▲ Ear cups in carbon design with metal bezels ▲ Rugged headband made of spring steel with moderate clamping force ▲ Light weight ▲ Modular construction for easy servicing ▲ Supplied with padded carrying case
TECHNICAL SPECIFICATIONS
Headphone Transducer type . . . . . . . . . . . . . . . . Dynamic Operating principle. . . . . . . . . . . . . . Closed Frequency response . . . . . . . . . . . . . 10 - 20,000 Hz Nominal impedance mono/stereo . . . 260 Ω / 560 Ω Nominal SPL . . . . . . . . . . . . . . . . . . . 100 dB SPL T.H.D.. . . . . . . . . . . . . . . . . . . . . . . . < 0.2% Power handling capacity. . . . . . . . . . 100 mW Sound coupling to ear . . . . . . . . . . . Circumaural Nominal headband pressure . . . . . . . 4 N Microphone Transducer type . . . . . . . . . . . . . . . . Condenser (back electret) Frequency response . . . . . . . . . . . . . 400 - 15,000 Hz Polar pattern . . . . . . . . . . . . . . . . . . Figure eight Sensitivity at 1 kHz . . . . . . . . . . . . . . 1 mV - 13 mV/1 Pa, adjustable Max. SPL . . . . . . . . . . . . . . . . . . . . . 120 dB Nominal impedance . . . . . . . . . . . . . approx. 350 Ω Current consumption . . . . . . . . . . . . approx. 5 - 10 mA Supply voltage . . . . . . . . . . . . . . . . . typ. 16 V DC (8 - 16 V DC, acc. to RTCA/DO 214) General Weight without cable / audio box . . . . approx. 340 g (0.75 lb) HS 800 Digital Cable . . . . . . . . . . . . . . . . . . . . . . . . approx. 1.80 m (70.87"), straight cable Connection Headphone . . . . . . . . . . . . . . . . . . . 1/4" stereo jack plug (6.35 mm) Microphone . . . . . . . . . . . . . . . . . . . PJ-068 jack plug Power supply audio box . . . . . . . . . . 2 x 1.5 V AA batteries or rechargable batteries, alternatively 12 - 36 V DC from aircraft system via 3-pin XLR connector Current consumption . . . . . . . . . . . . approx. 80 mA (when powered by batteries or rechargeable batteries) max. 30 mA (when powered via on-board power supply system) Operating time DANR. . . . . . . . . . . . approx. 25 hrs. when powered by batteries or rechargeable batteries Music player / mobile telephone . . . . 4-pole mini jack socket (3.5 mm)
