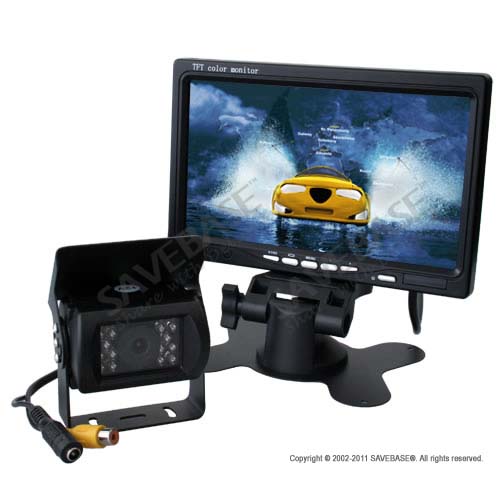

7" TFT LCD Rearview Monitor + Wireless Backup Camera

Descriptions

7" TFT LCD Monitor + Wireless Heavy Duty Night Vision Rear View Camera

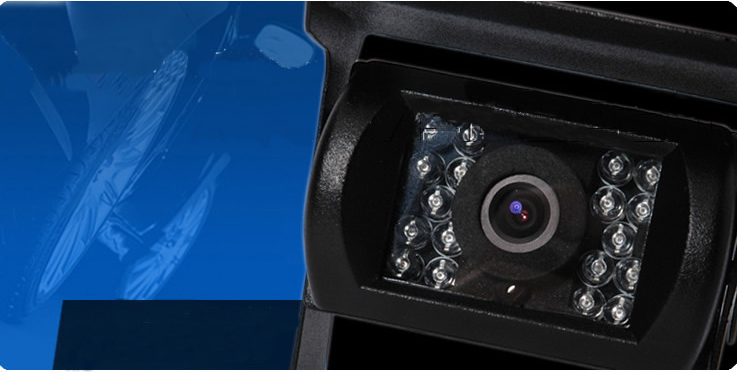

This camera outputs digital signals that has higher clarity, color contrast and sharpness for picture, with its 18 individual Infrared (IR) LED, and it shows clear images in low light especially at night circumstances. This heavy duty camera is hard metal cased, waterproof and mud proof. It can last for longer without heating up, so you can show the rearview all time.

The luxury solution for car reverse system

waterproof IR metal camera with wide view angle
2.4G wireless video transmission for bus/truck
7" High quality TFT LCD monitor
2 channel video inputs
Easy installation

Features

Transmission Range: 8m-12m

Transmitter cable is approx. 1.5m (4.95ft) long
Receiver cable is approx. 1.5m (4.95ft) long
Camera cable is approx. 45cm (1.5ft) long
Monitor cable is approx. 2.2m (7.2ft) long

Please Note: WIRELESS only means no wire connection is needed between the display to cameras. All other wires need to be connected.

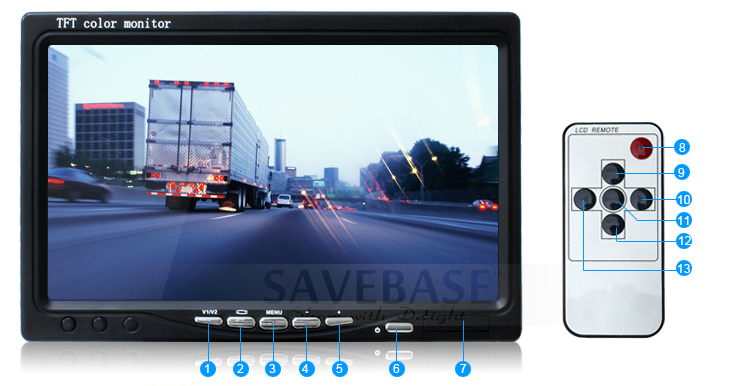

Multifunctional Panel

1. AV1 / AV2 Button	8. Power
2. Picture Rotation (Horizontal / Vertical)	9. Video (V1 / V2 Select)
3. Menu Button	10. VOL+ (Increase Button)
4. Volume-	11. Menu
5. Volume+	12. Mode
6. Power On / Off	13. VOL- (Reduces Button)
7. Infrared Receiver

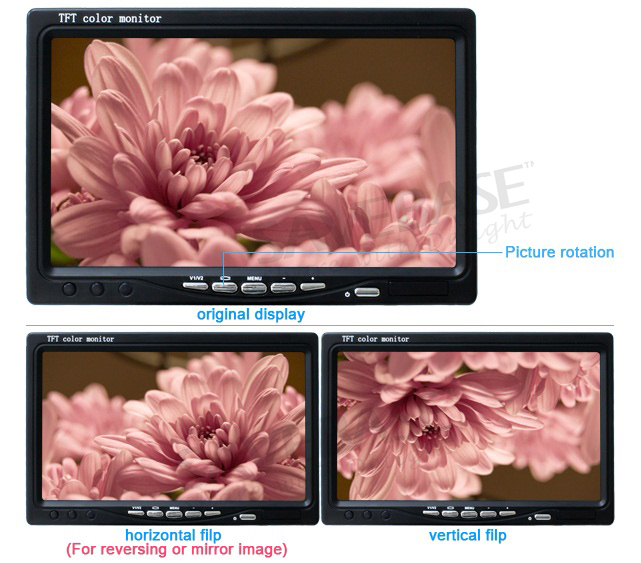

Vertical and Horizontal Rotated

Recommended for Buses / Trucks / Heavy Equipment Vehicles

Difficulty in detecting the rear of your large vehicle when reversing ?

It connects the backup light power+. When you reverse the car, the monitor will turn to rearview camera automatically.

Please Attention: Due to Airline restrictions, batteries for the remote control are not included.

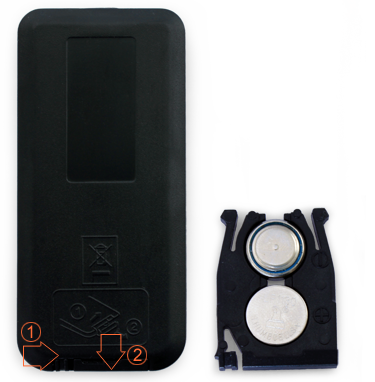

Battery Model: LR1130

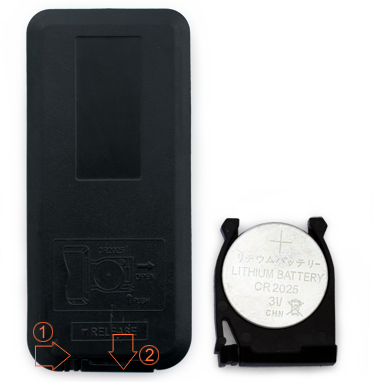

Battery Model: CR2025

1. What does the blue wire connect with?

It connects the backup light power+. When you reverse the car, the monitor will turn to rearview camera automatically.

2. Is it possible to flip or mirror the image on the display, as I want to put it on the left or right side.

Yes.

3. What's the price of an extra camera?

We have listing for the camera only. Please refer to our related listing.

4. Is the camera PAL or NTSC?

We send PAL camera(default). The monitor can recognize both PAL and NTSC camera.

5. I need this kit for diesel vehicle(24v).

This monitor is used on gasoline car(12V). If you drive diesel heavy vehicle(24v), please refer to our related listing or contact us before bidding.

6. What's the transmission range/distance.

The Max transmission range/distance is 10m.

7. I want to plug the monitor into the Cigarette lighter.

Yes, we can offer the Cigarette lighter cable(adding USD 8) and please check the connecting DIAGRAM.

If you are not sure which one to choose, please do contact us before bidding ! THANK YOU !

Top

Specifications

Color CMOS Camera
Pick-up Device	1/3" CMOS
TV System	PAL (CCIR), NTSC (EIA)
Scanning System	PAL: 625 Lines; NTSC: 525 Lines, 60 Field
Lens	2.8 mm (Option)
Number of Pixels	500 (H) * 582 (V), 510 (H) * 492 (V)
Horizontal Resolution	420 TV Lines
Scan Frequency	50 Hz, 60Hz
Electronic Shutter	1/50 - 1/100 (sec) 1/60 - 1/100,100 (sec)
S/N Ratio	>=48dB (AGC OFF)
Minimun Illumination	0.8 Lux / F1.2
BLC	Open
White Balance	Auto
Gain Control (AGC)	Auto
Video Output	1.0 Vp - p.75 Ω, BNC Connector
Synchronous System	Internal Synchronization
Operation Temperature	-20℃ - +80℃
Power Supply	DC 12V
Focal Distance	30mm to Infinite

7'' CAR TFT LCD Monitor
Display Size	7 Inch
Resolution	480 (W) * RGB * 234 (H)
System	PAL & NTSC
Power Supply	DC 12V
Consumption	6W
Video	2 - Channel Video Input, V1 / V2 Switch
Audio	One Way Volume Input
Net Weight	Around 740g

Top

1 x 7'' TFT LCD Monitor (DC 12V)
1 x Rearview Camera (DC 12V)
1 x Mounting Plate
1 x Trestle with Adhesive
1 x Remote Controller (batteries are not included)
1 x Signal Rransmitter
1 x Signal Receiver
1 x Install Instruction (Also you can DOWNLOAD for review)
