52mm Rudder Angle Indicator Gauge Meter 0-190ohms 7Colors LED With Mating Sensor

ECH Series Gauge Features:

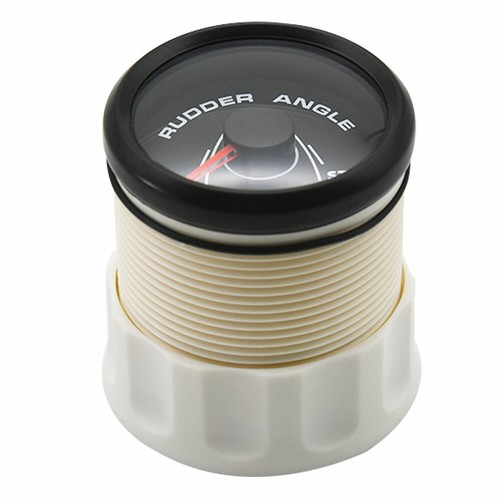

316L stainless steel for long-term use even in acid-base, humid environment.
IP67 waterproof and dustproof grade
Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision.
With curved glass (with anti-fog function)
With ultra-wide working voltage design (long-term operating voltage: 9-32V,
Maximum up to: 36V (≤ 1 minute).

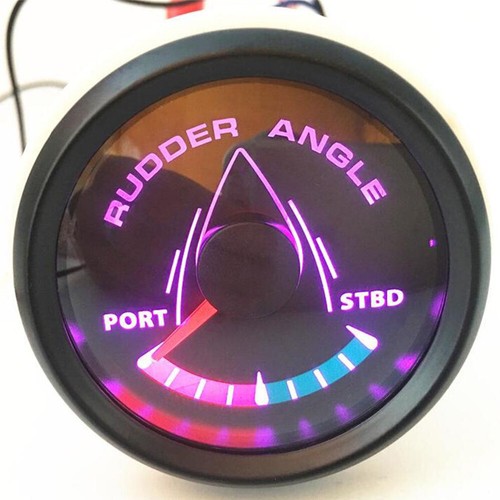

Gauge with multi-color LED light of back-lit illumination (red, yellow, green, blue, purple, white), can be customized according to customer's requirements
Products can be used in the engines / generator, engineering machinery, agricultural machinery, automotive modification, etc.

Specification:

Backlight Color Adjustment:

1)Press the Set button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) →green → blue → white → yellow → yellow green → orange → Purple → (automatic).
2) Automatic: As the gauges was set with the automatic, the backlight will be off for 2 seconds then lighten up, and will switch the backlight color as above sequence.
Users could select the input resistance as down below operations if you have Fuel /Water/Sewage level gauge. Hold the Mode button for 3 seconds to enter the setting mode, back light flickering for a while. The needle point at the E position, and you could select the corresponding parameter via pressing the button as down below form.

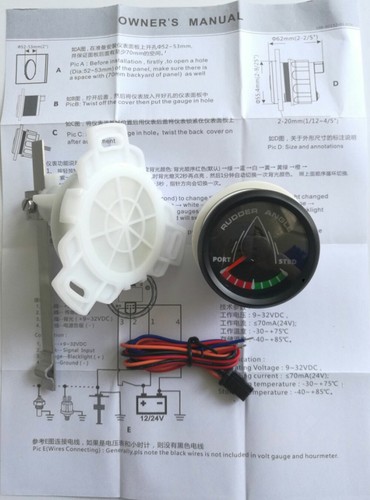

Package Includes:
