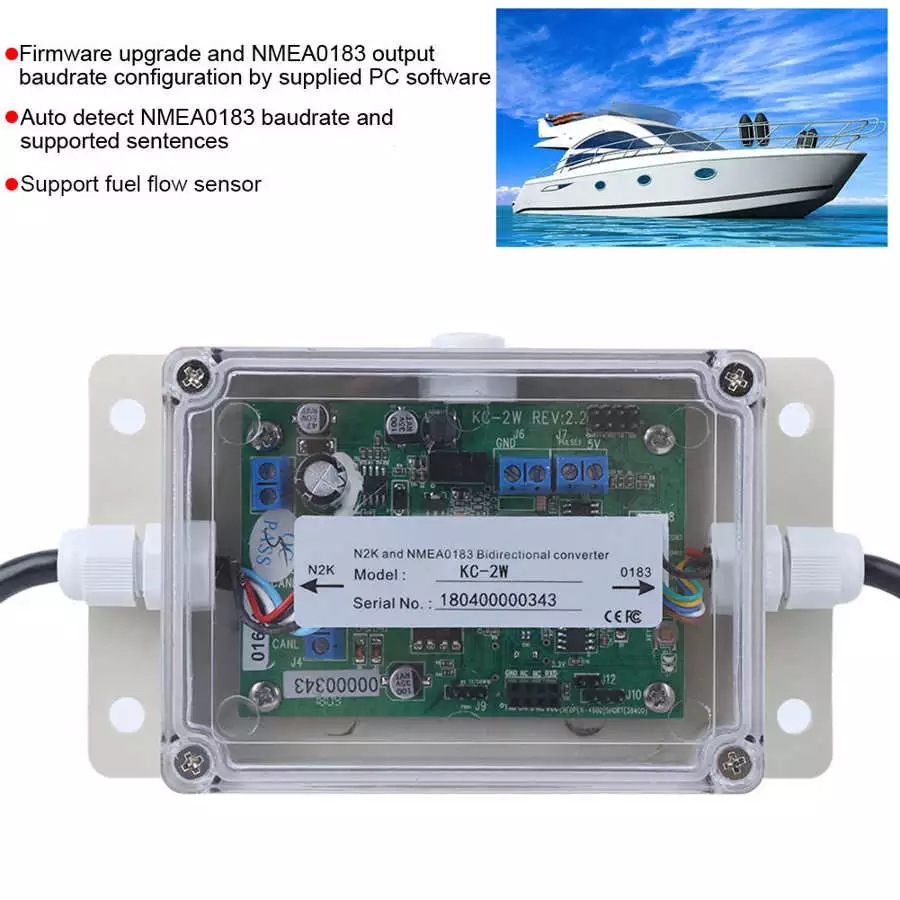

Features:
1. Plug and play, easy to install, convenient to use, overvoltage protection, fast and efficient.
2. Firmware upgrade and NMEA0183 output baudrate configuration by supplied PC software.
3. Support fuel flow sensor, auto detect NMEA0183 baudrate and supported sentences.
4. Take power from the N2K network, no external power supply is needed.
5. Converts NMEA 0183 sentences to N2K PGNs, converts N2K PGNs to NMEA 0183 sentences.

Specifications:
Conditon: 100% Brand New
Material: ABS
Color: As Pictures Shown
Voltage: 9-30V DC
Current Consumption: 50mA at 12V DC
Protection: Overvoltage, power supply transient and accidental reverse polarity protection
Supported PGNs: 126992 , 127237, 127245, 127488, 127250 , 127251 , 127258 , 127489, 128259 , 128267 , 128275 , 129025 , 129026 , 129029 , 129033 , 129038, 129039, 129040, 129044 , 129283 , 129284 , 129291 , 129539 , 129540 ,129793 , 129794 , 129798 , 129809 , 129810, 130306 , 130310 , 130311 , 130312 , 130578
Electrical: Optical isolation on the N2K Can bus
Connector: M12 male
Cable Length: Approx. 1.2m/1.3yd
Factory Default Setting: Enable all PGN supported above
Supported Signals: APB, BOD, BWC, BWW, DBT, DPT, DTM, GGA, GLL, GSA, GSV, HDG, HDM, HDT, MDA, MTW, MWD, MWV, RMC, ROT, RSA, VDM, VDO, VDR, VHW, VLW, VTG, XDR, XTE, ZDA
Electric:
Output: RS232
Input: RS232 photoelectric isolation
Baud Rate:
Input: Automatic detection (maximum 115200)
Output: Configurable (factory default is 38400)
Factory Default Setting: Enable all the above supported NMEA0183
Input Signal: TTL
Output:
N2K PGN: 127489
NMEA0183 Signal: XDR
Operating Temperature: -20°C to +55°C
Humidity: 93%±3% at 40°C
Waterproof Level: IPX67

Package List:
1*Directional Converter
4*Screw
1*Connector
1*Instruction
