IP67 10-way Panel M5 Stud Modification RV Switch Panel Yacht ≥10 Meters
DESCRIPTION


Product information:


*Product name: 10-digit 5MM ultra-thin membrane button switch + APP control dual-function model

* effective distance: ≥10 meters (in actual applications, due to environmental interference, the value is for reference only)

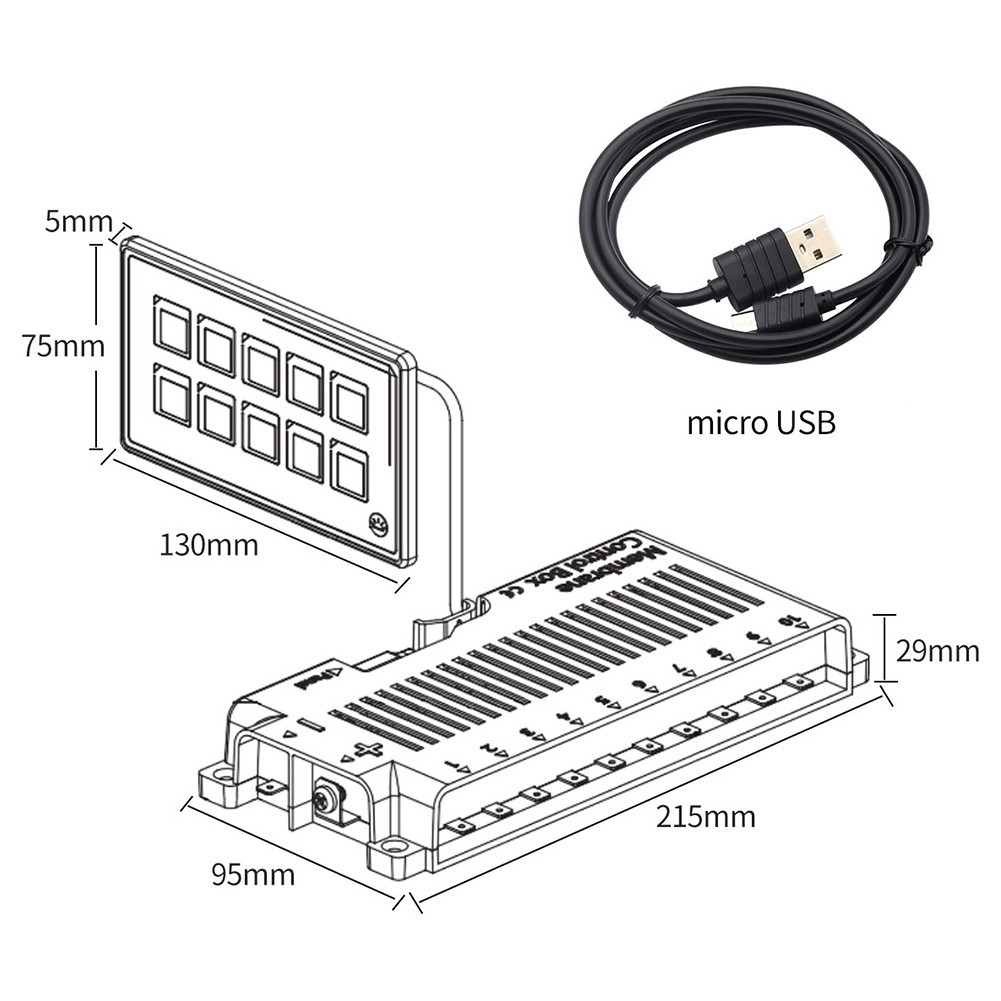

*Product size: panel is 130*75*5mm, control box: 215*95*29mm

*Packing size: 250*100*47mm (color box)

*Net weight: 469g Gross weight: 524g

*The length of the link cable between the control box and the panel is 1 meter



Features:

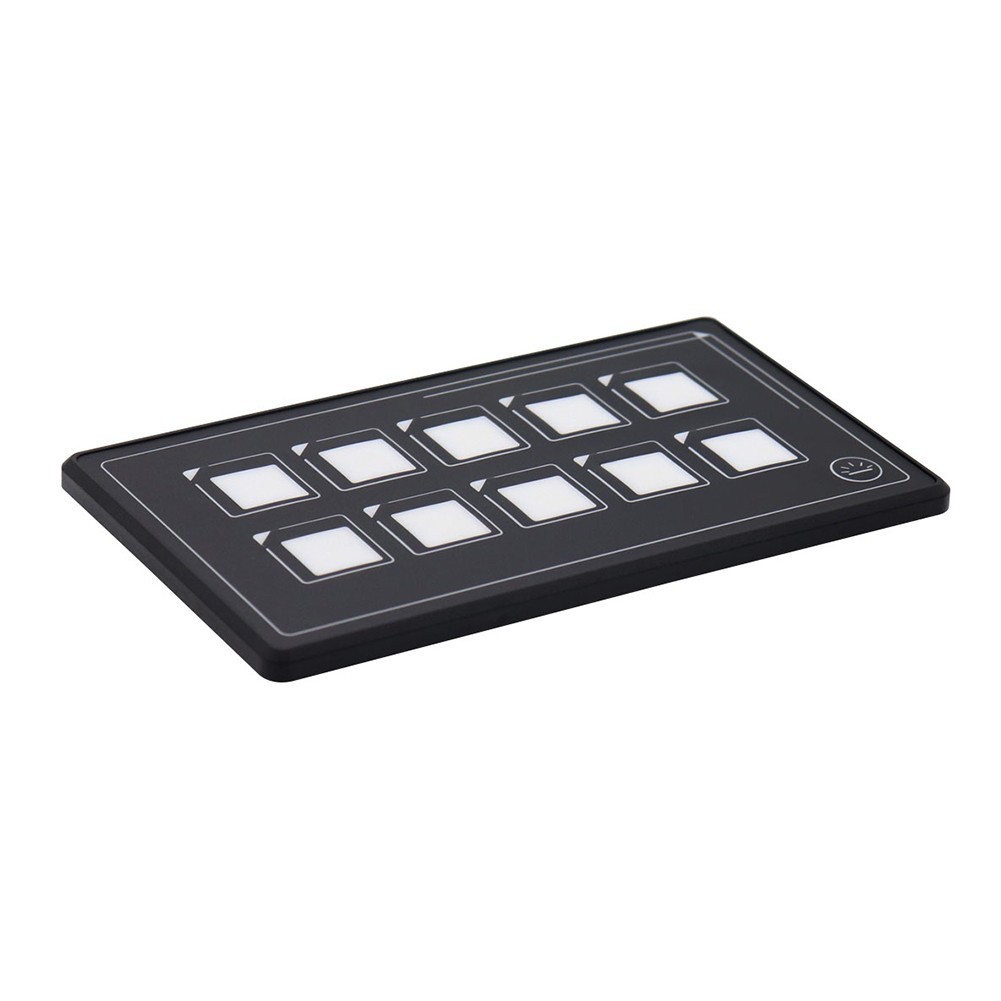

*1. Ultra-thin 5MM membrane panel switch, smaller than the traditional rocker switch, easy to install-no installation depth, small drilling, installation is more beautiful, and save space

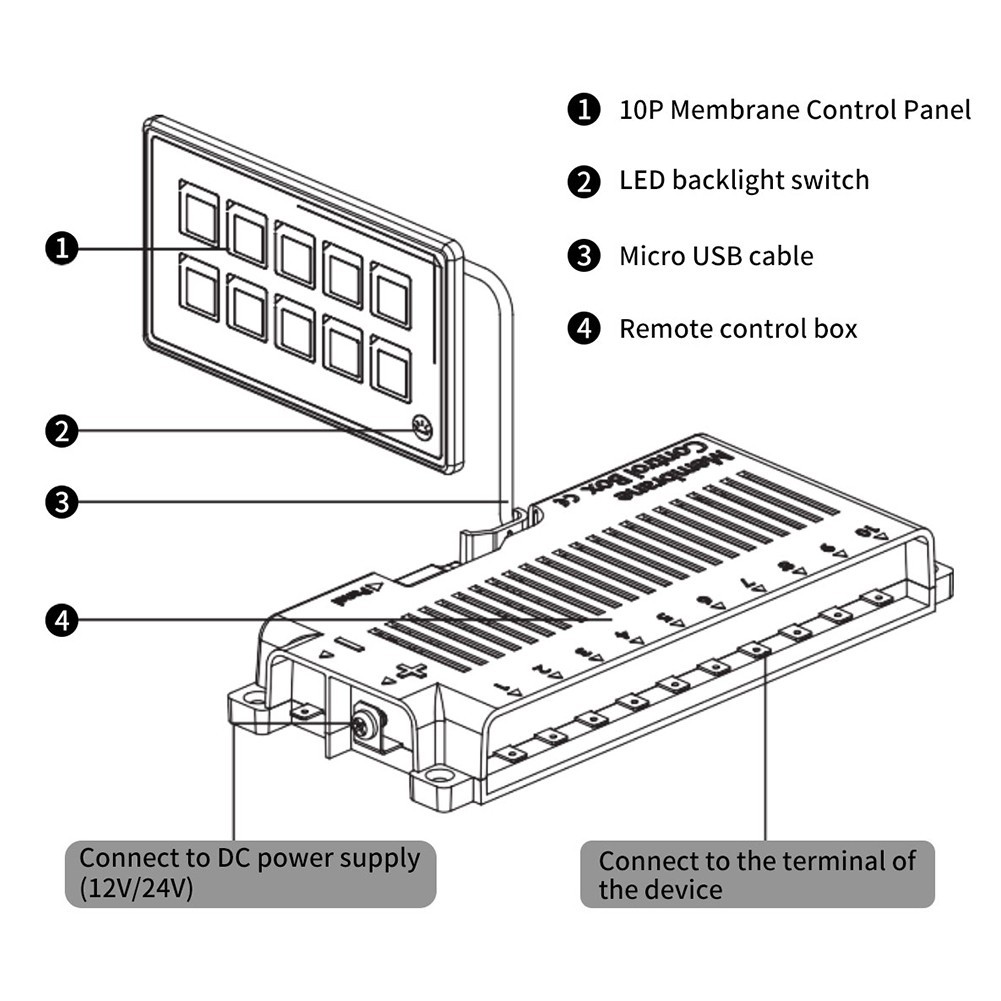

*2. Flexible wiring-the control relay box is installed at a distance of 1 meter from the touch screen

*3. IP67-IP67-protected even when temporarily immersed in water (panel only)

*4. ON indicator LED/10A self-resetting fuse for each branch

*5. With LED backlight, easy to operate in the dark

*6. Low standby current

*7. Programmable momentary buttons-all buttons can be programmed as reset buttons (the reset function is usually suitable for horn or wiper applications)

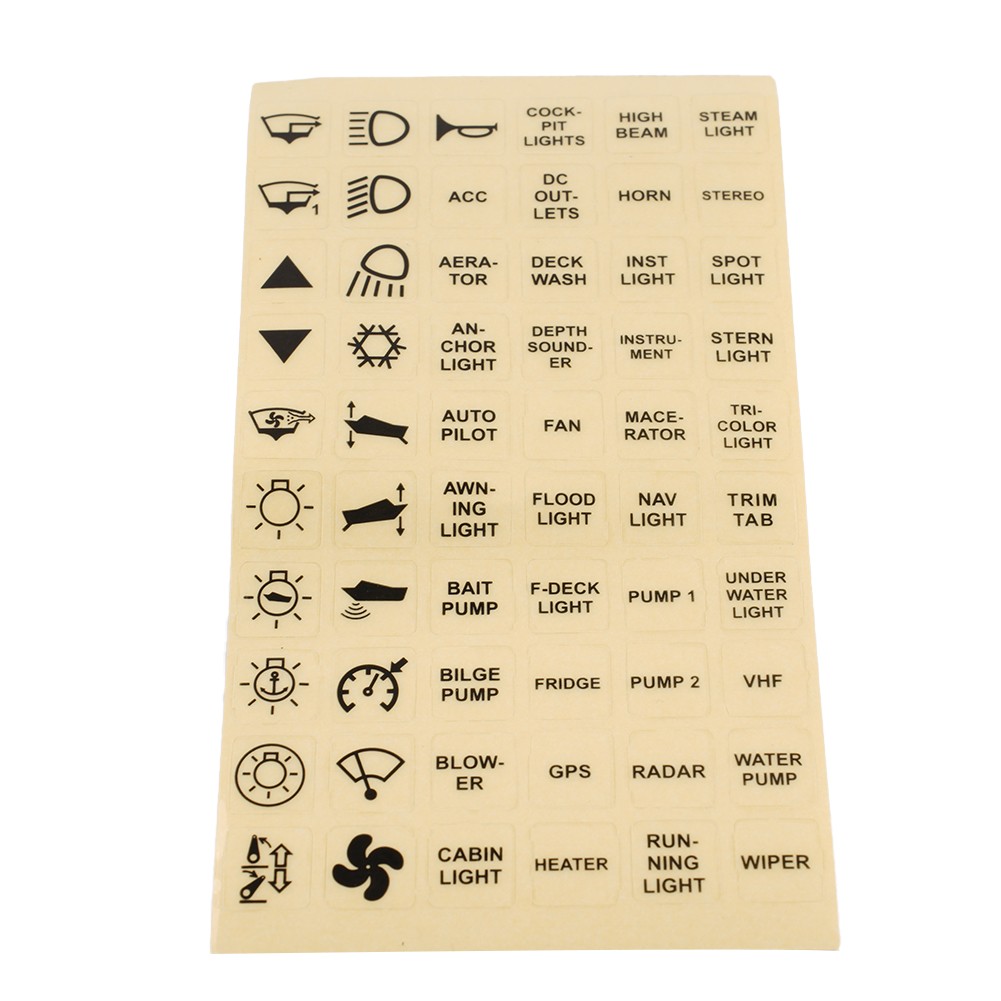

*8. Includes 60 various graphic and text label sticker sets

*9. This switch can also be remotely controlled by mobile APP (for Android/iOS)

Customizable labels, panel styles, and backgrounds in the virtual panel in the APP. The panel can also observe the battery voltage in the APP and has a low-voltage prompt

*10. Up to 4 different control boxes can be paired, and can be easily switched between control boxes

After switching between 4 boxes, the application will remember the label and panel styles of the paired boxes

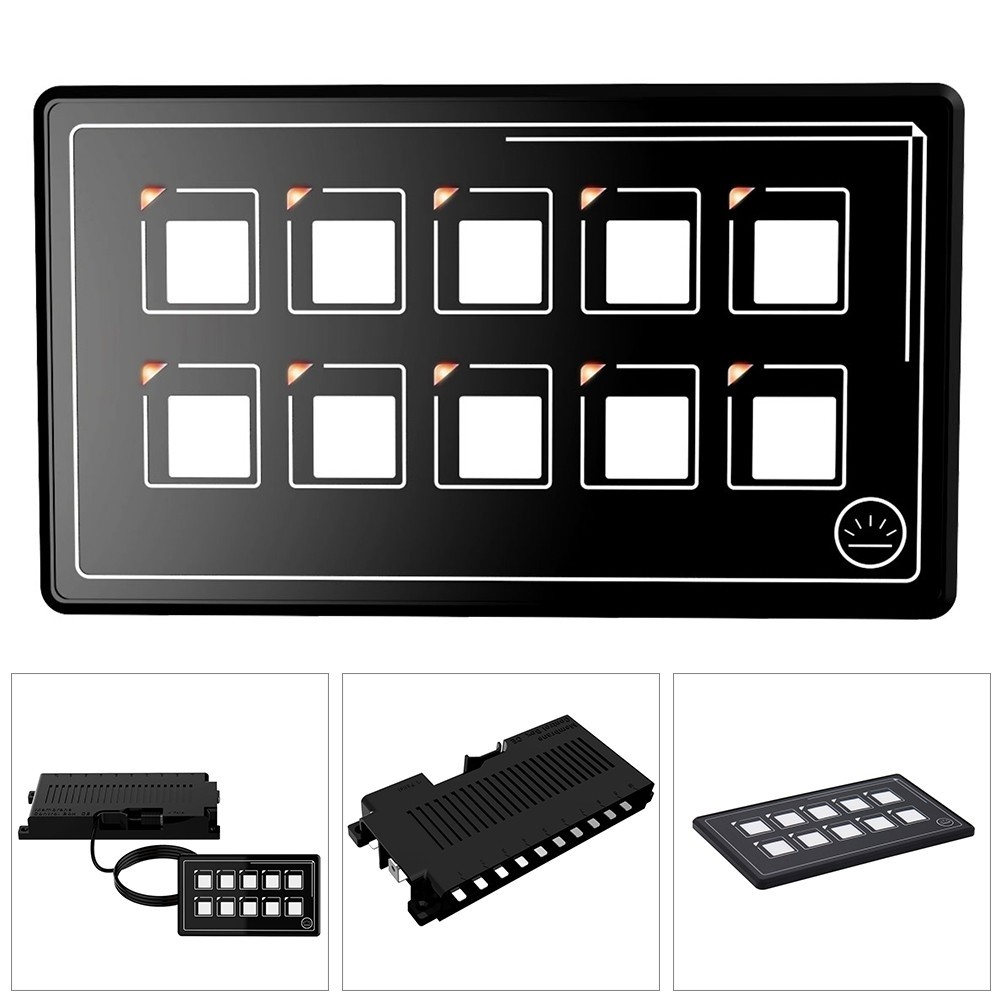

Switch panel information:


*Panel | PET film touch screen

*Circuit protection|Built-in resettable fuse (PPTC)

*The switch rating is 10A per branch

*Panel rating|Maximum cumulative current: 60A

*Rated voltage | DC 11-30V

*Note | IP67 (Diaphragm)

*Power terminal | M5 stud size ring terminal

*Load terminal|.250 fast terminal (male)

*Product application: 11-30V DC ; such as automobiles, RVs, yachts,

*Installation : please read the manual for details

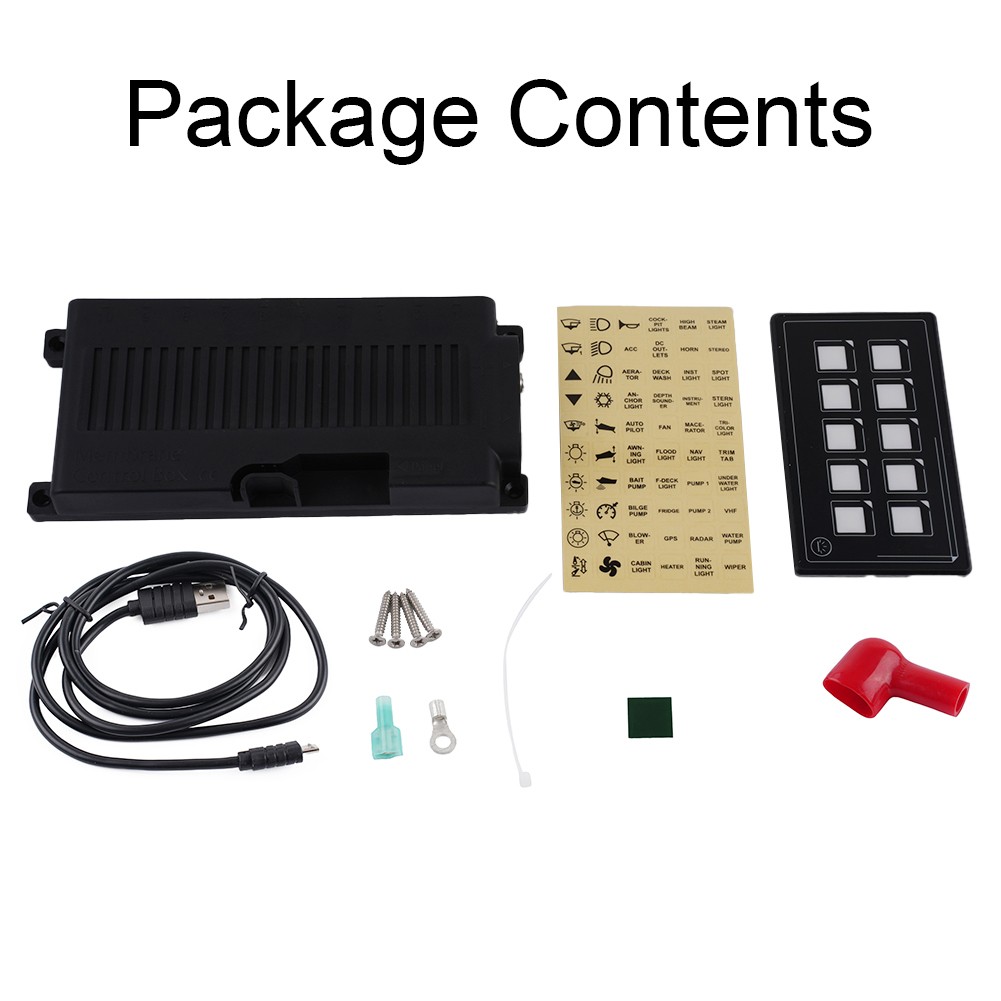

Package content:


1 *10-way panel

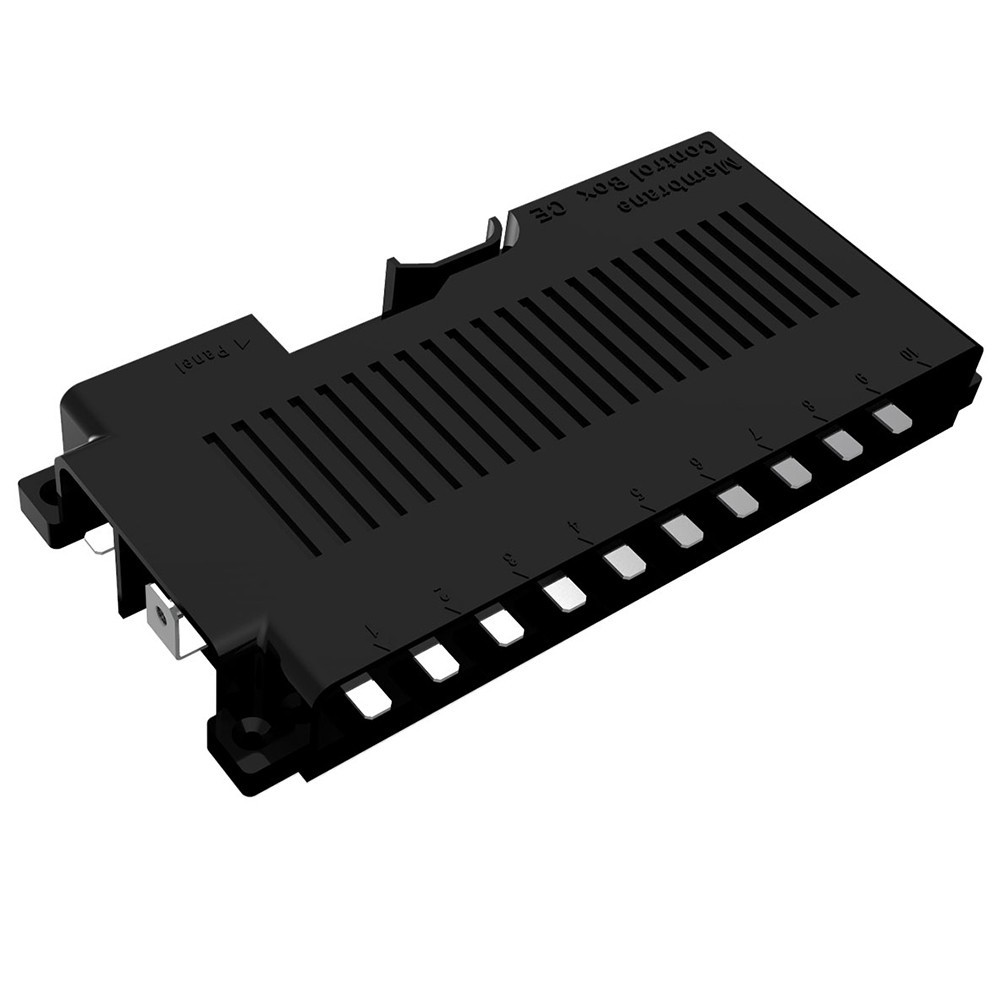

1 *Control relay box

1 *USB cable

1 *Manual

1 *Label sticker

1 set*Installation accessories



Note:


1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
