1.Description:

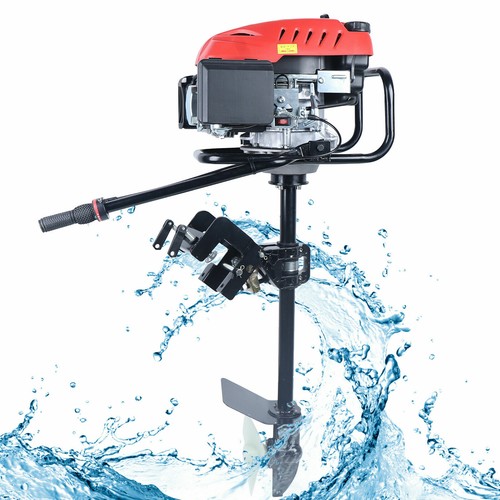

 Professional  4 Stroke  electric outboard motor, fishing boat engine shaft outboard motor, can propel your boat well.Be as one with the silent world with this Genuine outboard motor. With huge thrust, a super-strong shaft and speed control, it will put the bait just where it needs to be without the fish ever knowing you're there.Suitable for small water crafts such as inflatable boats, canoes and aluminum fishing boats.

2.Specifications:

Transmission Mode; Spline Transmission, Hard Shaft, Spiral Bevel Gear Installation Method; Fixed Support Frame Combination or Clamping Bracket Backward Way; 360 Rotation

Whole Propeller Configuration; Counterclockwise: Three-blade or Two-blade Anti-wrapping

Starting Mode; Pull Start

Exhaust Muffler Method; Muffler Is Discharged Directly Outside the Machine

Recommended Fuel; 92# or Above Gasoline

Recommended Lubricant; Engine: Sae10w_30 Gearbox: Hypoid Gear Oil Sae90 Suspension Height; Suspension Point to Propeller 60-70-80cm

Reduction Ratio; 22:15

Dimensions; 395x348x1150 Mm

Machine Weight (Kg) 26

Gasoline Engine Technical Parameters:

Model Rv170

Gasoline Engine Type; Horizontal bar Horizontal, Four-stroke, Overhead Valve (Ohv)

Exhaust Volume; 173.3 (Ml)

Bore×Stroke; 70×45 (Mm)

Theoretical Power; 3.2kw/3600r/Min

Recommended Power; 2.4kw/3000r/Min

Torque; 9.0nm/2, 500r/Min

Fuel Consumption; 395g/Kw.h

Cooling System; Forced Air Cooling

Ignition System; Capacitor Discharge Type

Power Output Mode; Vertical Axis Output

Spark Plug Gap; 0.7-0.8mm

Carburetor Idle Speed; 1900±100r/Min

Valve Clearance (Cold Engine); Intake: 0.15±0.02mm

Exhaust: 0.20±0.02mm

Shaft length： 70cm

3.Weights&Dimensions:

Package size: approx.116.00 * 38.00 * 48.00CM

Weight30kg

4.Packing List:

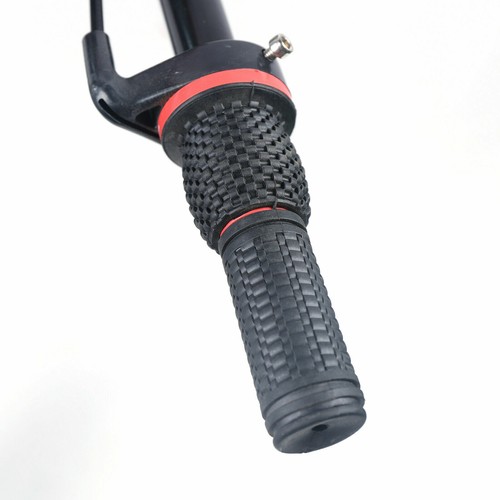

Outboard Engine + Tools + Throttle Main Line
