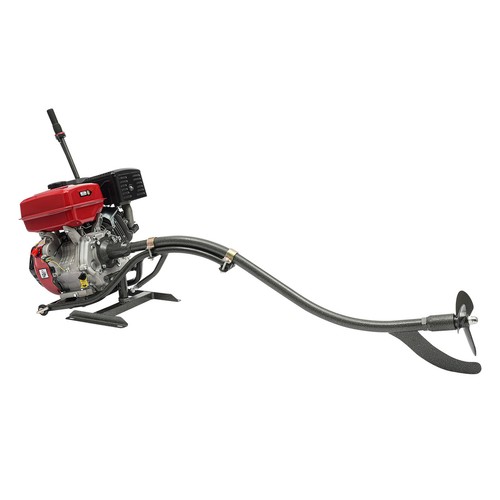

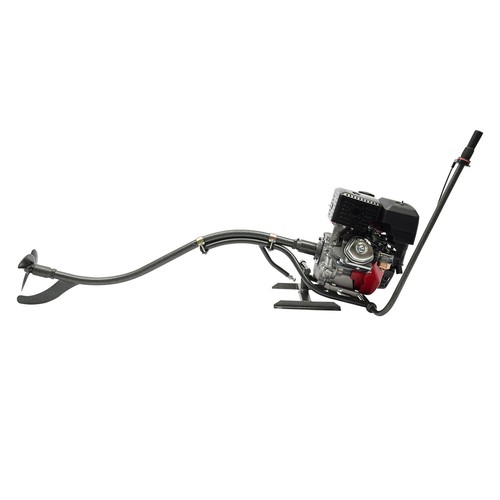

Description

This four-stroke outboard motor has a strong power of 15P with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 180-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. Such an energy-saving, stable, and efficient outboard engine is a good assistant for your water operation.

Key Features

Powerful Engine: With a 15P engine that spins up to 3600 rpm, this is powerful enough to allow you to drive fast and save a lot of effort and time.

Durable and Sturdy: This product is mainly made of high-quality aluminum and adopts a spray molding process, making it highly resistant to impact, friction, and corrosion.

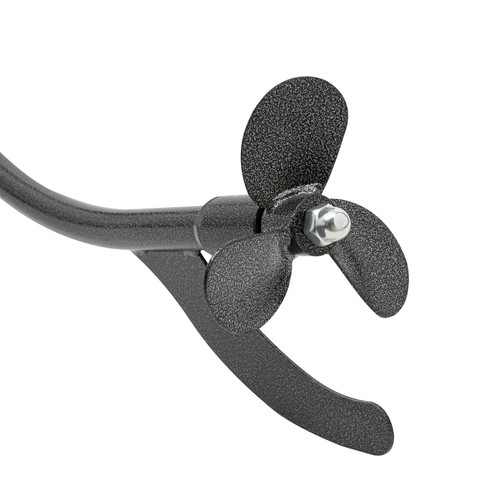

High Performance: The superior engine wind cooling system and three-blade propellers can reduce drag and balance thrust, achieving optimal performance. They can overcome huge water resistance, improve driving speed, and improve efficiency.

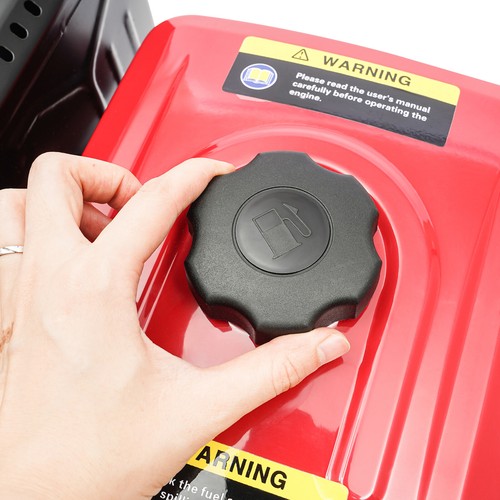

Large Capacity: This outboard engine has a fuel tank capacity of 1.72 gal and can work continuously for over 3 hours, meeting the needs of long-distance travel and work.

Flexible Steering: This product supports 180-degree flexible steering, allowing you to easily handle various curves.

Easy to Operate: The engine shutdown switch is installed on the engine, throttle cable, and acceleration handle are installed on the control handle, together with the TCI ignition system, manual start function, and infinitely variable throttle, allowing for easy operation.

Good Noise Abatement: Compared with a two-stroke, this four-stroke product has a better noise abatement effect. It can provide a quieter working environment for you.

Excellent Heat Dissipation: The heat dissipation holes and air cooling system provide good ventilation to prevent engine overheating and improve its stability and reliability.

Energy Saving: A four-stroke machine can save about 30% more gasoline than a two-stroke machine for the same horsepower. This four-stroke outboard engine with a low fuel consumption (≤ 395g/kW.h) can save you money to a certain extent.

Protective Package: The packaging box is equipped with anti-collision foam, sponges, and bubble films which can effectively avoid the loss caused by general vibration and collision during transportation and ensure that you can receive intact products to a certain extent.

Details

Sturdy Base: The thickened and enlarged base ensures stable support for the engine, so you can use it with confidence.

Protective Board: It avoids hitting the bottom of the water when sailing in shallow waters.

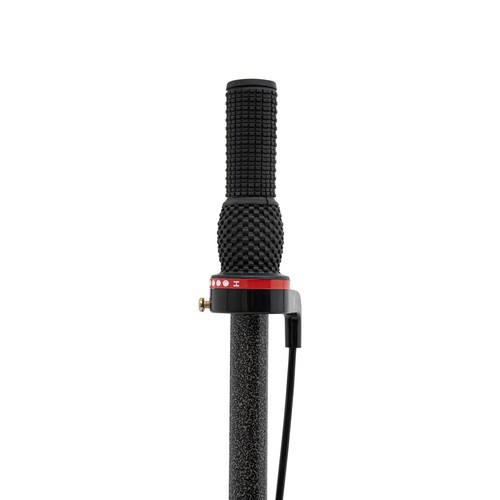

Rubber Handle: It can enhance the grip of the handle and avoid slipping.

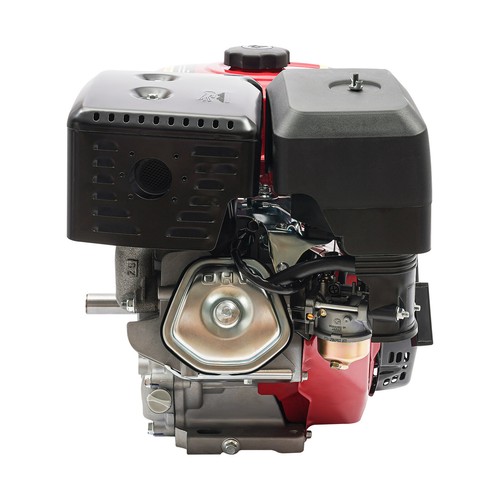

Air Filter: The enhanced air filter can improve the airflow to the motor, thereby improving performance and efficiency.

Application

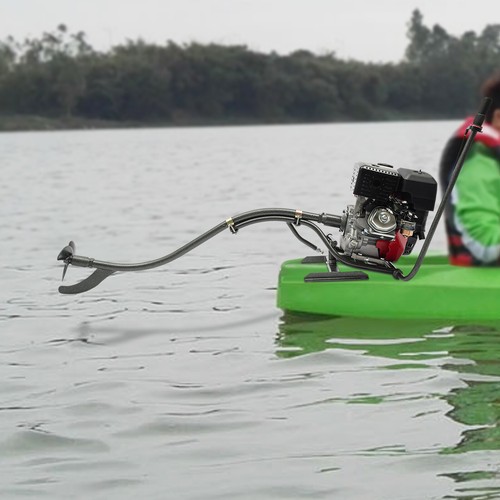

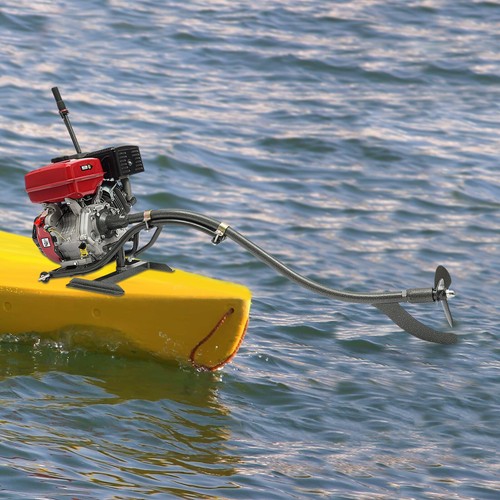

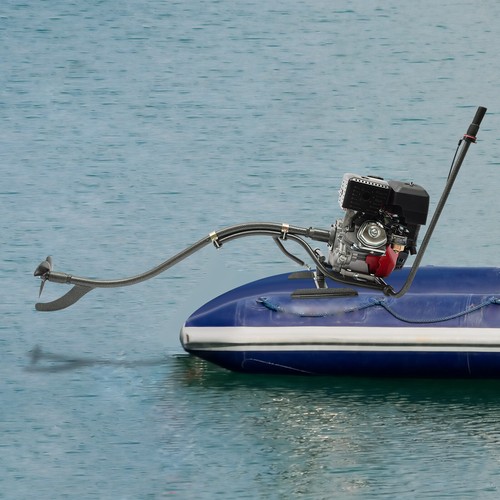

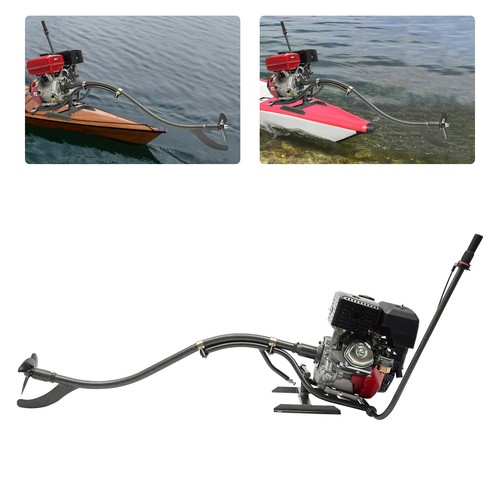

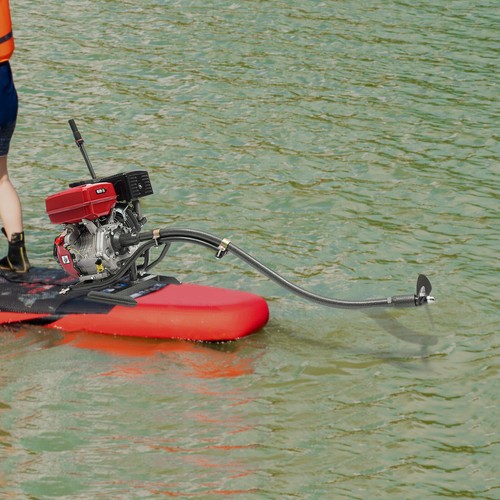

The product is suitable for small boats of 9.84-19.69ft such as rubber boats, wooden boats, fishing boats, etc. It can be widely used in water sports, water tourism, fishery production, and other fields.

Specification

Color: Black and Red

Number of Items: 1

Assembly Required: Yes

Material: Aluminum and Steel

Surface Treatment: Spray Molding Process

Starting Method: Manual Start

Recommended Fuel: Normal Unleaded Gasoline

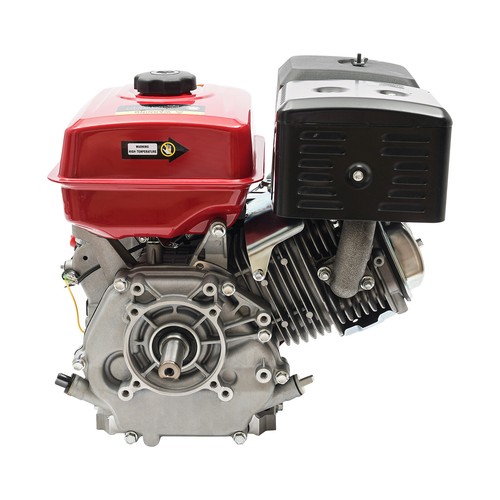

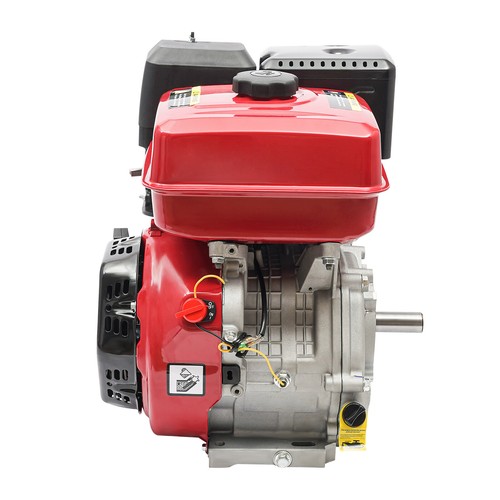

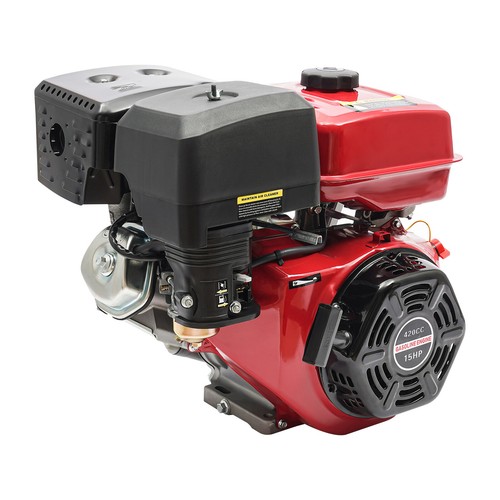

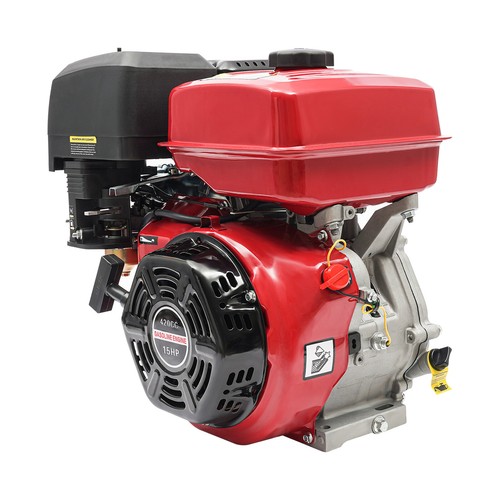

Engine Type: 4 Stroke, Single Cylinder, Air-cooled

Ignition System: TCI

Power Type: AWT190F/P(AWT190FD/P)

Bore*Stroke: 90x66mm/3.54*2.6in

Displacement: 420cc

Max Power: 9.0kW/3600rpm

Power Rating: 8.5kW/3600rpm

Peak Torque: 25N·m/2500rpm

Fuel Tank Capacity: 6.5L/1.72gal

Fuel Consumption: ≤374g/13.19oz/kW·h

Oil Volume: 1L/0.26gal

Horsepower: 15HP

Speed: 3600rpm

Running Time: about Three Hours

Running Time: About 3 Hours

Operating Speed: ≥ 9.5km/5.9miles/h

Applicable Ship Size: 3-6m/9.84-19.69ft

Engine

Gross Weight: 40kg/88.18lbs

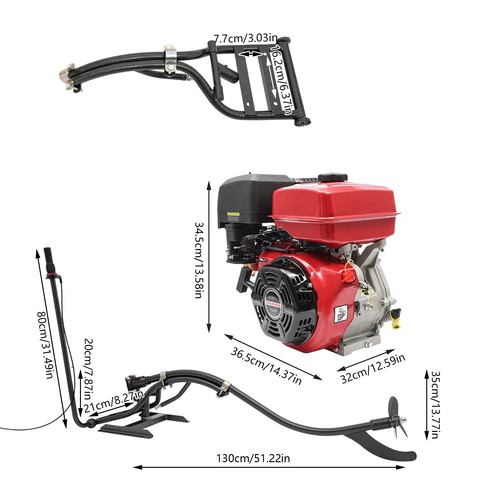

Motor Size: 36.5*32*34.5cm/14.37*12.59*13.58in

Package Size: 56*48*54cm/22.05*18.9*21.26in

Rack

Gross Weight: 22kg/48.5lbs

Net Weight: 20kg/44.09lbs

Rack Size(L&H): 101(80+21cm)*20cm/39.76(31.49+8.27)*7.87in; 130*35cm/51.18*13.77in

Package Size: 138*34*22cm/54.33*13.39*8.66in

Package Included

1* Four-stroke Outboard Engine

1* Rack

1* English Manual

All Accessories Required for Installation

Notes

• Please read the operating manual and label carefully before use and pay particular attention to the safety instructions included.
• All the gasoline machines are noisy, we did not test the decibels, but the noise is the same as the motorcycle, so it is a normal phenomenon.
• Please keep your hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.
• Please don't start the engine on the bank. If you want to test the engine, it should be done in the river. Please don't use the engine when it stops coming out of the water.
• Please use up the gasoline in the fuel tank before storing it for a long time. The engine should be stored in a dry and well-ventilated place, avoiding direct exposure to sunlight.
• Before leaving the factory, the engine oil (lubricating oil) is discharged and needs to be added before use. It is strictly prohibited to start without adding oil.
• The product belongs to machines that operate at high temperatures, so the oil should be of the specified model and cannot be replaced with ordinary oil. After adding oil, Please do not place it horizontally as it can easily cause oil leakage.
• 10 hours is the running-in period, after which the lubricating oil needs to be changed for the first time. The gear oil in the propeller area must be replaced regularly.
• After using it in salt water, it must be washed immediately with clean water
• Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
