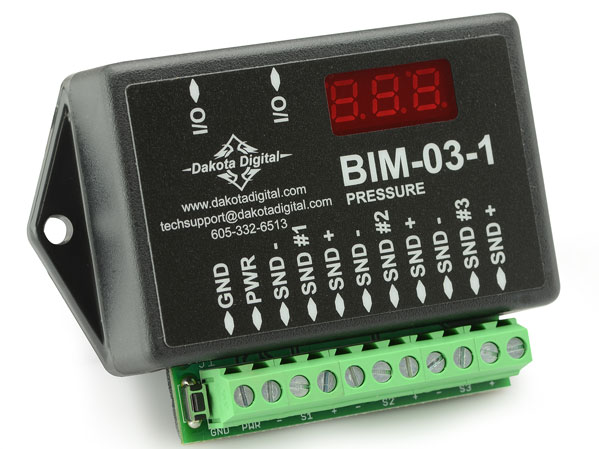

Dakota Digital Pressure Module - BIM-03-1
The BIM-03-1 is a multi-pressure module that allows you to add up to 3 additional pressure readings to your VFD3 (rev G) or VHX gauges. The BIM-03-1 utilizes Solid State Pressure senders to give you phenomenal accuracy (*see resolutions in the chart below).
Pressure Inputs:
- Pressure (generic fluid or air)
- Fuel Pressure
- Air Pressure
- Boost/Vacuum
- NOS Pressure
Input senders and specifications:
| Gauge Display | Sender Part # | Range | Resolution | Low Warning | High Warning |
| PSI | SEN-03-9 | 0- 300psi | 1 | 0- 252 | 48- 300 |
| FUEL P | SEN-03-8 | 0- 100psi | 0.2 | 0- 63 | 9- 99 |
| AIR P | SEN-03-9 | 0- 300psi | 1 | 0- 252 | 48- 300 |
| BOOST | SEN-09-6 | 30inHg- 80psi | 1inHg/ 0.2psi | none | 7- 69 |
| NOS P | SEN-23-2 | 0- 2000psi | 10 | 600- 900 | 900- 1200 |
*The BIM-03-1 is designed to supply information to the VFD3 rev. G and VHX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
Senders sold separately.
SEN-03-8 (0-100psi Fuel Pressure Sender) is available for an additional $79.95.
SEN-03-9 (0-300psi Pressure Sender) is available for an additional $42.70.
SEN-09-6 (30Hg/ 80 PSI Vacuum/ Boost Sender) is available for an additional $125.00.
SEN-23-2 (0-2000psi NOS Pressure Sender) is available for an additional $125.00.
Need More? NEW BIM SERIES from Dakota Digital
Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD and VHX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.
Please note that the BIM modules are only compatible with current VFD, VHX and RET control boxes which have a black plastic housing. Control boxes with metal housings are not compatible with the BIM modules.
Please look through our store for other BIM modules we may have listed. Here is a chart of the ones currently available (sold separately):
