Buy ECUsim 2000 OBD-II ECU Simulator by ScanTool STANDARD Edition - 602201 in Gig Harbor, Washington, US, for US $199.95

Item must be returned within:14 Days Refund will be given as:Money Back Return shipping will be paid by:Buyer Restocking Fee:No Return policy details: Returns Accepted:Returns Accepted Part Brand:ScanTool Manufacturer Part Number:602201 Warranty:Yes Country of Manufacture:United States

FREE EXPEDITED SHIPPING FOR US customers -- (International buyers, please be aware that customs declarations may require additional time for shipping which is out of our control). Also, for international orders, we advise requesting insurance on your order. Postal services within certain countries we have shipped to in the past have been un-reliable with product delivery and we can't take responsibility for lost or otherwise "held-up orders". We are an AUTHORIZED DISTRIBUTOR for ScanTool.net products! All hardware and software products are GENUINE NEW and UNOPENED in their original ScanTool packaging!

Quick Overview

ECUsim 2000 is an ECU simulator for OBD-II software and hardware testing and development. The 2000 is available in 3 editions which over varying levels of user control. The Professional & Ultimate editions feature over 40 software commands that provide complete administration of the simulator, and allow you to create custom ECUs, add/delete DTCs & freeze frames, create PIDs, and dynamically assign their values.

Note: ECUsim 2000 can be purchased with any combination of protocols. You will receive one protocol with your purchase. Each additional protocol is an additional +$200.00 cost. Please indicate which one (s) you would like to purchase. If more than one, we will supply an additional PayPal invoice.

Protocols *

1 -- J1850 PWM
2 -- J1850 VPW
3 -- ISO 9141-2
4 -- ISO 14230-4 (KWP2000)
5 -- ISO 15765 (CAN)

Overview

ECUsim 2000 is a small, lightweight, entry level OBD simulator that is an indispensable tool for OBD hardware and software development and testing. It supports all legislated OBD-II protocols, fixed and user adjustable parameter IDs (PIDs), diagnostic trouble codes (DTCs), freeze frames, VIN, and many other SAE J1979 services.

ECUSim 2000 has five knobs assigned to common PIDs, a "fault event" button, and indicator lights for power, connection, and MIL (Malfunction Indicator Light). Physical connection with the device under test is made through a standard SAE J1962 female connector.

ECUsim 2000 features a USB connection which can be used to enable software control, select the active protocol, monitor OBD traffic, and upload firmware updates.

The simulator can be purchased with any combination of "unlocked" OBD-II protocols, from as few as one to as many as five. Attempting to switch to a protocol that has not been unlocked will produce a "PROTOCOL LOCKED" message.

ECUsim 2000 Editions Comparison Chart

The ECUsim 2000 is offered in 3 firmware editions: Standard, Professional, and Ultimate. For more information about the features listed, please consult the ECUsim 2000 Programming Manual.

	Professional	Ultimate
Supports all OBD-II protocols¹
Functional and physical addressing
Default ECUs: ECM, TCM, ABS
Supports SAE J1979 modes 1, 2, 3, 4, 7, 9, A
USB connection
Software selectable protocol
Firmware updates
Custom ECUs	up to 3	unlimited*
Custom PIDs	00 – 4F	unlimited*
Custom DTCs	limited**	unlimited*
Custom freeze frames	1	unlimited*
User settable VIN & CAL ID
Send OBD messages under software control
Knobs assignable to PIDs²
Signal generator (sine, triangle, square, random)²
Custom request/response pairs²
No limitations on future functionality

¹	ECUsim 2000 can be purchased with any combination of the following protocols: J1850 PWM, J1850 VPW, ISO 9141, ISO 14230 (KWP), and ISO 15765 (CAN)
²	Planned functionality; not currently available
*	The number of dynamic objects is limited by available RAM
**	The maximum number of DTCs in the Professional edition is limited to 6 stored, 4 pending, and 1 permanent DTC per ECU

Features

Support for all legislated OBD-II protocols:
- SAE J1850 PWM
- SAE J1850 VPW
- ISO 9141-2
- ISO 14230-4 (KWP2000)
- ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
Functional and physical addressing
Three default virtual ECUs: ECM, TCM, and ABS
Five knobs assigned to frequently used PIDs:
- Coolant Temperature
- Engine Speed (RPM)
- Vehicle Speed
- Oxygen Sensor Voltage
- Mass Airflow (MAF)
Supports SAE J1979 modes 1, 2, 3, 4, 7, 9, and A.
"MIL", "Link" and "Power" indicators
"FAULT" button
USB connection for configuration, control, and bus monitoring
Standalone or software-controllable
Standard J1962F connector
Firmware upgradeable

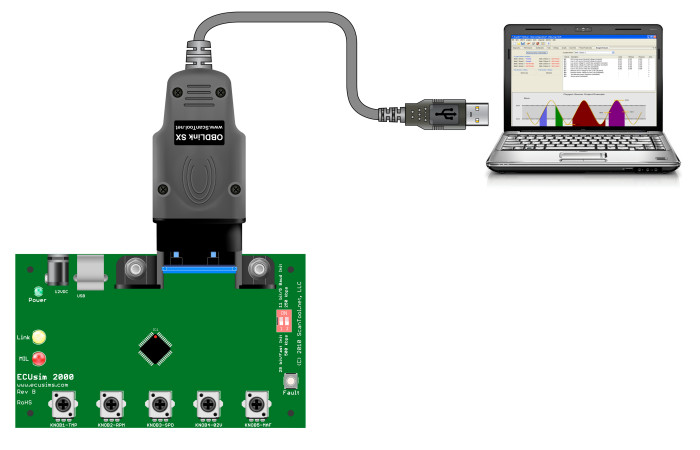

Typical Standalone Configuration

In the above example, ECUsim 2000 simulates a vehicle's ECU. OBDLink SX is the chosen interface between ECUsim 2000 and a laptop running OBD-II software.

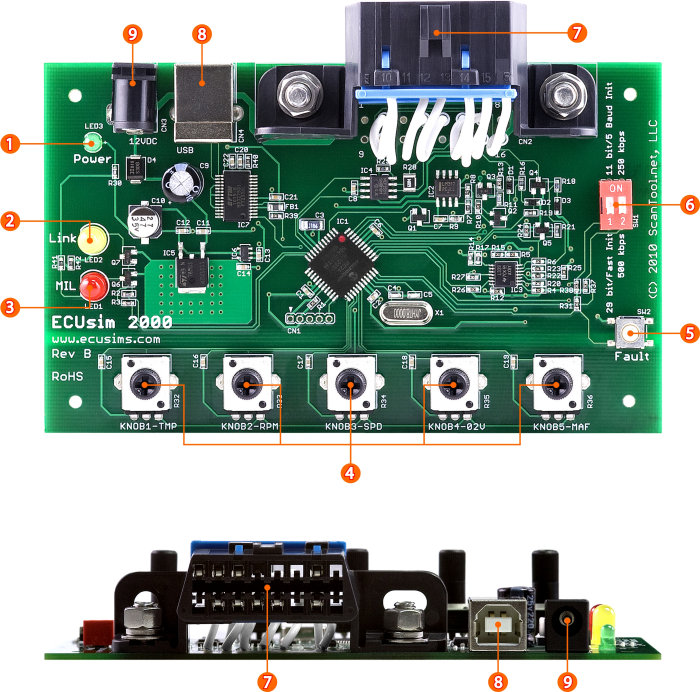

User Interface Diagram

ECUsim 2000 OBD simulator

Power LED
Link LED
The function of this LED depends on the protocol in use:
a. ISO 9141-2 and ISO 14230-4 protocols: the LED is on while at least one ECU is initialized. The LED dims when an OBD message is received.
b. J1850 and CAN protocols: the LED blinks when an OBD message is received.
Malfunction Indicator Light
Knobs assigned to the five commonly used Mode 1 PIDs.
Fault button
When pressed, the following happens:
a. Set MIL and number of stored DTCs (Mode 1, PID 01)
b. Generate pending, stored, and permanent* DTCs
c. Generate freeze frame data
Configuration DIP switch has two switches that set protocol attributes for ISO 15765-4 (CAN). Switch number 1 is also used to select the init type for ISO 14230-4:
a. 29 bit/11 bit. Selects CAN frame ID type.
b. 500 kbps/250 kbps. Selects CAN baud rate.
c. Fast Init/5 Baud Init. Selects the type of initialization for ISO 14230-4.
Diagnostic Link Connector (DLC)
USB connector
Power jack (12 VDC)

* SAE J1979 defines permanent DTCs only for ISO 15765-4 (CAN)

Package Contents

ECUsim 2000 OBD simulator unit
110/220 VAC to 12 VDC switching power supply
US style power cable
USB cable
