Mud-skipper Long Tail Mud Motor Kit - 8-16hp Jon Boat Swamp on 2040-parts.com
Lyons, New York, US
Propellers are not warrantied against rock strikes.
We fully warranty our products, and back them up with the excellent service the Caswell Group of Companies is well known for.
LONGTAILS have been the low cost alternative to thousands of boaters in the Far East for years. They are used by commercial fisherman and hunters and are well known for travel in shallow, and muddy waters.
More recently, American duck hunters have discovered they are ideal for powering LAYOUT & SNEAK BOATS into shallow areas, and they leave a low overall profile.
The Chinese have developed huge commercial tourist attractions as these simple motors have been strapped to the ancient style bamboo river rafts, fitted with seating so folks can enjoy the sights of the many rivers as the wind through the countryside. These rafts have now evolved and plastic sewer pipes are used to make the rafts, making a cheap and reliable mode of transport.
Kit comprises -
- LONG SHAFT 100" 100" Nylon Greaseless Prop Bushing with 5 Taiken shaft bushings
- PTO HOUSING & PTO SHAFT - Shaft is 1" diameter
- TRANSOM MOUNT,
- ENGINE MOUNT BASE,
- STEERING HANDLE,
- 1 x PROPELLER 7.5" DIAMETER, powder coated for longer life and better efficiency.
- GENUINE SEA DOG SAFETY KILL SWITCH
- ALL BOLTS UPGRADED - grade 5 steel hex bolts/nuts

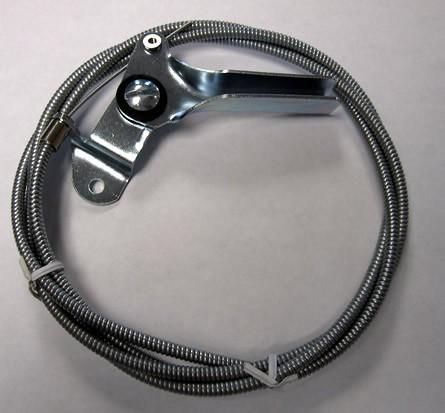

- HEAVY DUTY LEVER AND THROTTLE CABLE. Heavy duty lever and solid wire make this the ideal system for operating small engines. Many, like the Predator range, have three small holes to insert the Z bend at the end of the wire. Multi-strand cables.
Engine Size Requirements
1” diam. parallel horizontal output shaft with keyway..

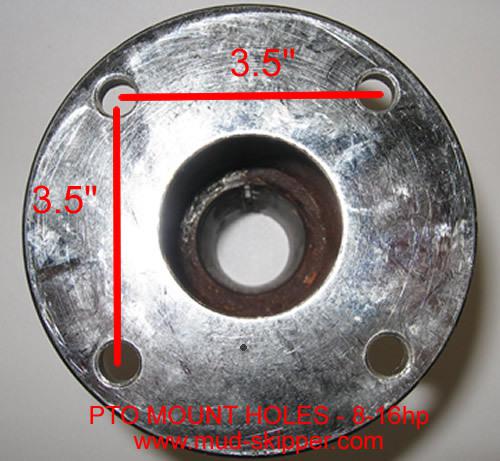

PTO cover bolt pattern of 3.5 x 3.5" square pattern or 5" diameter

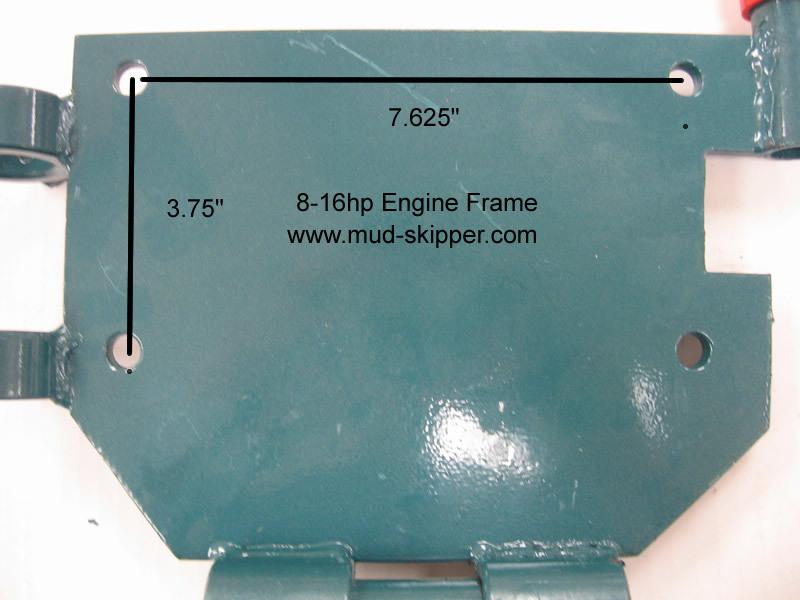

Engine base bolt pattern of 7 11/16” x 3 3/4”. Can be drilled to suit other engine bases (service not supplied)
- 1 year limited warranty. Props are not warrantied.
The Harborfreight 420 cc 14 HP OHV Horizontal Shaft Gas Engine is ideal for The 7.5" Prop Drive System (item#69736) selling at approx $400. It has the added feature of an electric start. The 346cc 11HP engine is also suitable
Other suitable engines are
Honda G300-400, GX-240, 340, 390, 270
Honda 11hp GX340 models: GX340UT2QA2, GX340UT2QNE2
Honda 13hp GX390 models: GX390UT2QAA2, GX390UT1QNE2, GX390UT2QXC9
CARROL STREAM COMPANY 11hp, 13hp, 16hp
A member of The Caswell Group of Companies
