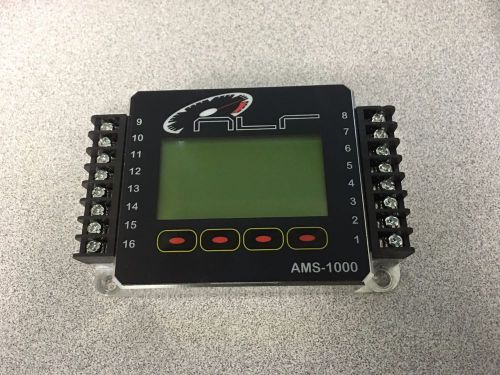

Nlr Ams 1000 Boost Controller on 2040-parts.com

• SSI 5 bar 0 to 60 psi range
• SSI 6.5 bar 0 to 99 psi range

• Time Based One to six timed stages are available with this mode of operation. Each stage has an adjustable timer to control the duration. The Ramp Rate (rate at which the pressure is applied) is adjustable from 0 to 100 psi per second. A Ramp Rate setting of 0 does not disable the stage. The target psi will instantly rise at the end of any timed stage with a 0 Ramp Rate setting. The target psi can be increased or decreased over time to achieve the desired Boost Profile.
• Shift Based One to six stages are available and are controlled by a shift-input signal. The Ramp Rate for each stage is programmable as well as the Target psi for each stage (gear position). The Ramp Rate settings perform the same functions as in Time Based mode.
• GPS Based One to six stages are available and are controlled by a 0-5 volt analog Input signal. This mode is for newer sport bikes or any vehicle that produces a different voltage for each gear position. A switch that produces a different voltage for each position can be used to select different boost profiles (up to six) on vehicles that do not use a Gear Position Sensor system. The Ramp Rate for each stage is programmable as well as the Target psi for each stage (gear position). The Ramp Rate settings perform the same functions as in Time Based Mode. Data logging is NOT available with this mode of operation.

• Billet aluminum enclosure and all parts are specified over an extended temperature range.
• Vibration and weather proof.
• System software can be erased and reprogrammed by the factory for future software updates.
• User settings will remain for up to 20 years with no power applied. No back up batteries are needed.
• Factory default RESET available in the options menu to restore controller to state it was out of the box from the factory.
• Launch mode programmable to range of selected MAP sensor.
• Scramble boost to apply an amount of pressure that you program to the gate, thus increasing boost no matter where in the main program you are currently at. Think of it as an emergency boost button (kinda like a shot of nitrous) Remove the signal and it goes back to current target psi. Can be used as a single stage of boost.
• Reduce boost which works the opposite of scramble. It will remove a programmed amount from the current target psi. If you spin stab a button and it will reduce power instantly.
• Delay timer for Activation in Shift Based Mode and First stage of Time based mode may be used as a delay timer.
• Multiple operating modes:

• Time Based (up to 6 stages) programmable to ONE one-hundredth of a second.
• Shift Based (up to 6 stages) programmable to ONE one-hundredth of a second.
• GPS (up to 6 gears), self learning, can be used on anything with a voltage output to indicate gear position -- programmable to ONE one-hundredth of a second.

• Programmable Ramp Rate to control the rate at which the pressure is applied. 0 to 100 psi range.
• Dual output channels available or the auxiliary channel may be used for live boost pressure data viewing and data logging. Basically there are 2 controllers in 1 box. You can control multiple waste gates , valves, blow offs on supercharged systems thus giving you boost control.
• Integrated Dual channel data logger with 35 seconds of record for each channel. Graph view of logged data. Logged data will remain until it is erased by user.
• Graph view of programmed settings.
• Display backlight and contrast is user adjustable from the options menu.
• Help screens and setup wizards to help with setup.
• Most inputs can be configured for + 12volt or ground activation.
• All inputs have input protection diodes. All outputs have integrated noise suppression devices to clamp fly back voltage from solenoids.
• Outputs short circuit protected and over current protected( 7 amp Maximum)
• Reverse battery protection.
