Tanks Inc Efi In Tank Sump And Pump Conversion Kit on 2040-parts.com

 This pump is rated to 650 HP

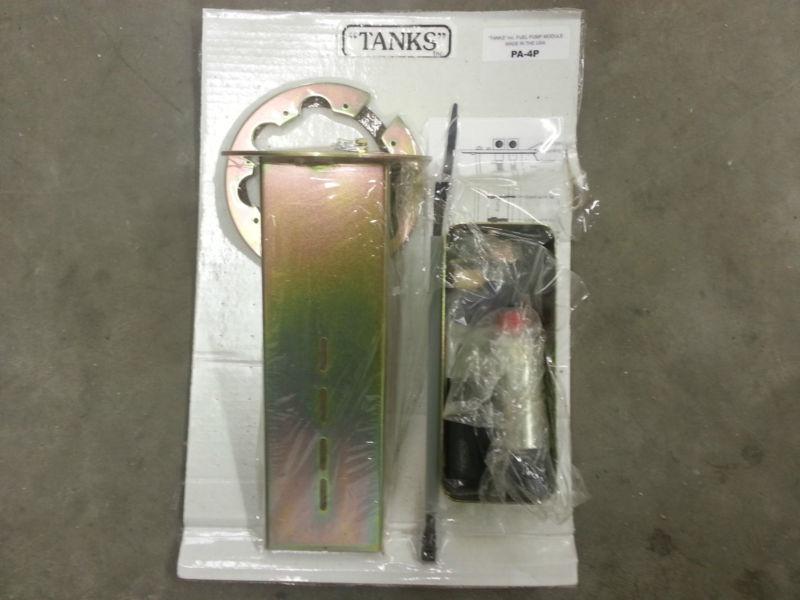

PA Series EFI Gas Tank Conversion Module.  This In-Tank Fuel Pump module can be used to retrofit a fuel pump into your original gas tank.

The pumps listed are capable of running anywhere from 40 to 100 PSI and they will deliver a varying amount of fuel (gallons per hour) depending on the pressure. We have recorded the GPH at 30, 40, and 60 PSI as a guide to finding the correct pump for your particular installation. In addition, you can use the following list as a general rule of thumb for some of the more common engine swaps. See below for Installation Instructions

Note: "TANKS" 35M, 37M, and U-T poly tanks do not require the "P" suffix.

Note: Our kits do not include pressure regulators.

Note:  All flow rates are rated at 13.5 volts.

Note: Assembly requires a minimum tank depth of 6 inches.

Note:  Maximum tank depth of 10.5 inches with no modification.



• You assemble to the depth of your tank and install
• All Metal Components are (Yellow Zinc Plated Steel)
• Reservoir Tray Included
• 1/4" NPT Supply Line
• 1/4" NPT Return Line
• Vent Opening
• In-Tank Wiring Harness
• 40-100 PSI Rating
• Threaded In-Tank Mounting Ring
• Heavy Gauge Mounting Plate
• Adjustable Support Arm
• Genuine Walbro Fuel Pumps are supplied

Pump Flow Rates:

TBI 109 Liter Per Hour Pump

• 29 GPH @ 12 PSI

 Deluxe 190 Liter Per Hour Pump

• 54 GPH @ 40 PSI
• 50 GPH @ 50 PSI
• 48 GPH @ 60 PSI

High Flow 250 Liter Per Hour Pump

• 68 GPH @ 40 PSI
• 65 GPH @ 50 PSI
• 62 GPH @ 60 PSI

High Performance 400Liter Per Hour Pump (500 - 1000 Horsepower)

• 106 GPH @ 40 PSI
• 99   GPH @ 50 PSI
• 91   GPH @ 60 PSI

NOTE: All Flow Rates Are At 13.5 Volts

Optional 1/4" NPT Rollover Vent Valve for PA series Pumps. #VV The PA series fuel pump assemblies come with a female 1/4" NPT fitting on the top plate.  When converting your tank to fuel injection it is essential that your tank is properly vented.  This rollover vent valve will thread right into the PA pump assembly.
