Tial Q 50mm Blow Off Valve 11psi Spring Black on 2040-parts.com
San Angelo, Texas, US
Q is the first revision of the original TiAL BOV. The Q bolts up to any standard TiAL flange, no re-welding. This is the highest flowing BOV on the market. It's offered with a variety of springs for different vacuum levels and a special spring specifically for supercharged vehicles
Specifications
- For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
- The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
- The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
- The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
- An aluminum weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
- Through countless hours of R&D we were able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.
- Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
- A single Q BOV can support up to 1,800hp
- -2psi spring for supercharged applications
Whats in the Box
Included with every Tial Q:
Q Assembly
TiAL Vband Clamp
Vband Weld Flange
TiAL Air Fitting
High Pressure O-ring
Available Colors
Silver
Black
Red
Purple
Blue
TiAL V-Band Clamp
TiAL Designed V-Band Clamps are manufactured in house.
CNC machined aluminum clamps ensure a secure and pressure tight fit.
Turbo Chargers & Parts for Sale
Turbo xs rfl blow off valve subaru wrx 2008-2012(US $186.75)
Turbosmart boost tee manual boost controller turbo ts-0101-1001 (blue)(US $54.99)
Turbosmart boost tee manual boost controller turbo ts-0101-1002 (black)(US $54.99)
Honda sohc d15 d16 honda crx del sol civic 1988-2000 m2 test pipe(US $39.95)
Turbosmart vee port pro bov universal turbo blow off valve (black)(US $159.99)

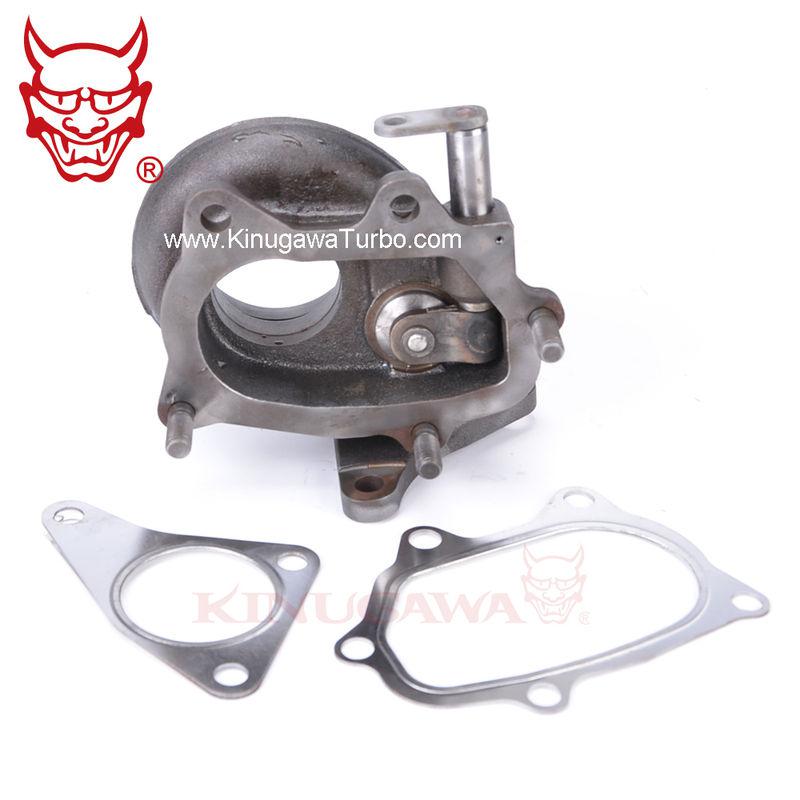

Turbine housing subaru wrx sti ihi rhf55 p18 vf30 vf35 vf39 vf41 vf43(US $185.00)
