200 Tire Rigid Rolling Chassis Harley Bobber & Chopper on 2040-parts.com
Zieglerville, Pennsylvania, US

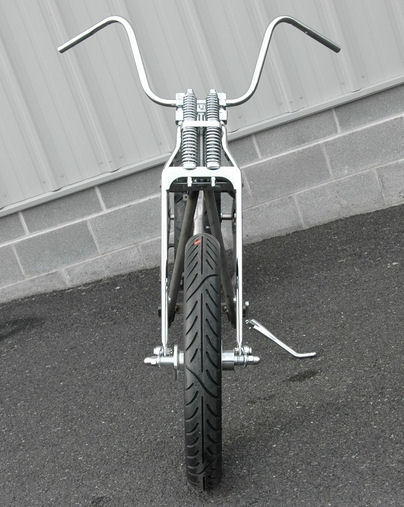

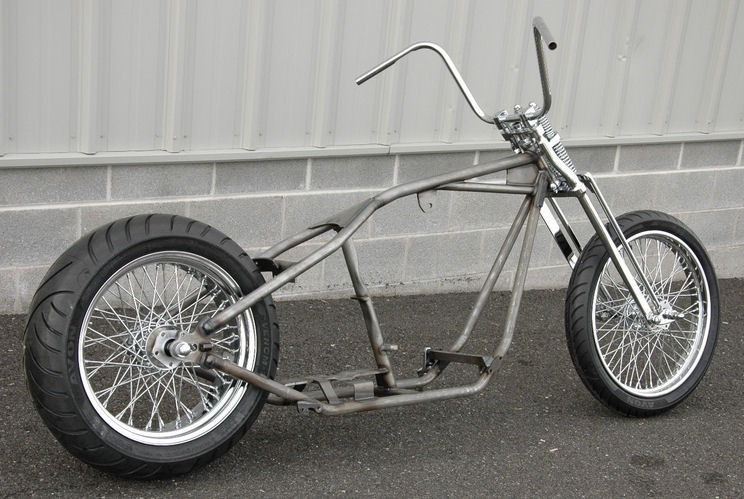

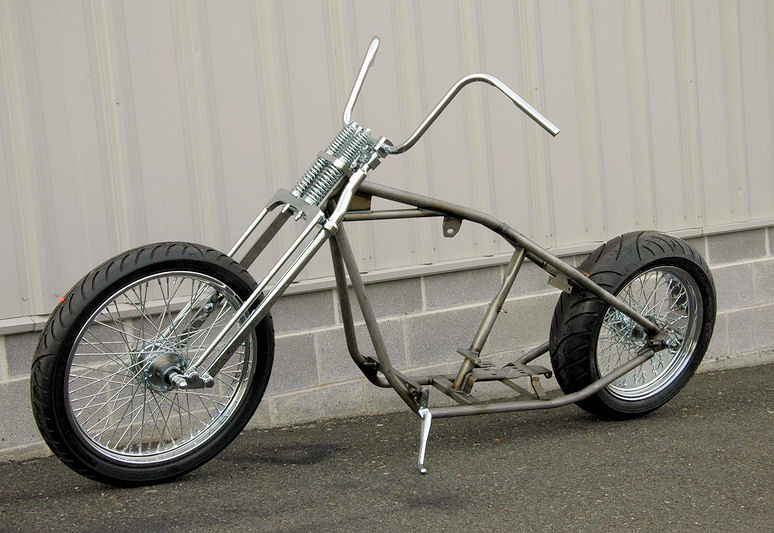

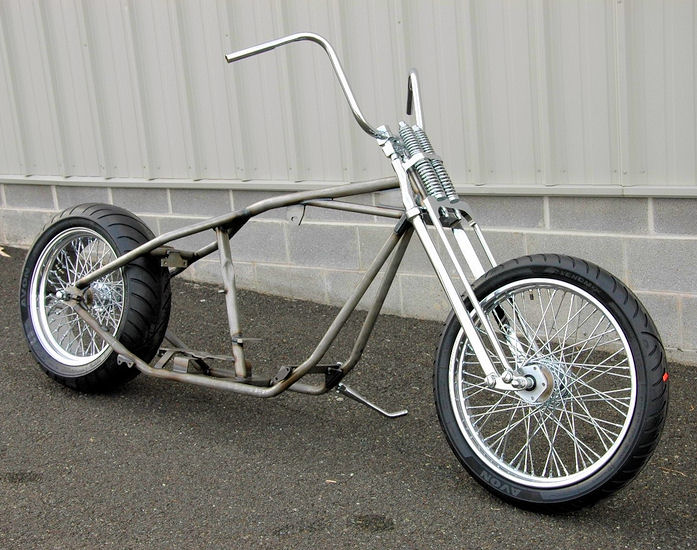

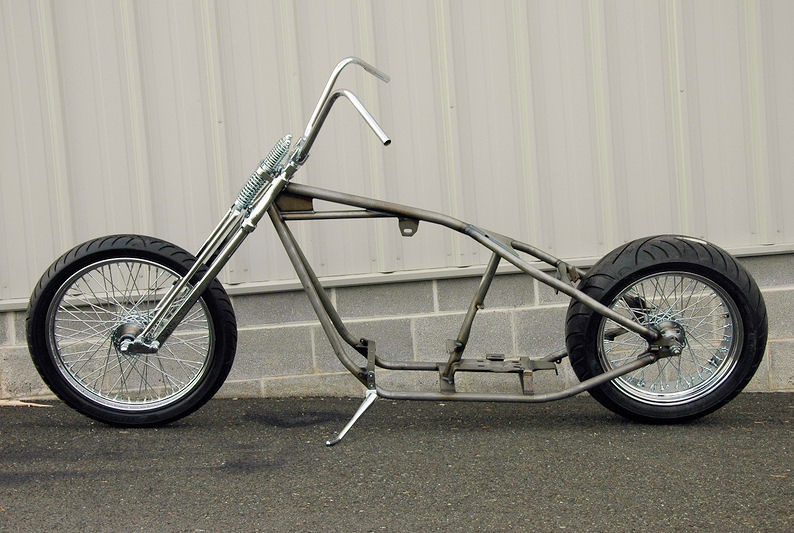

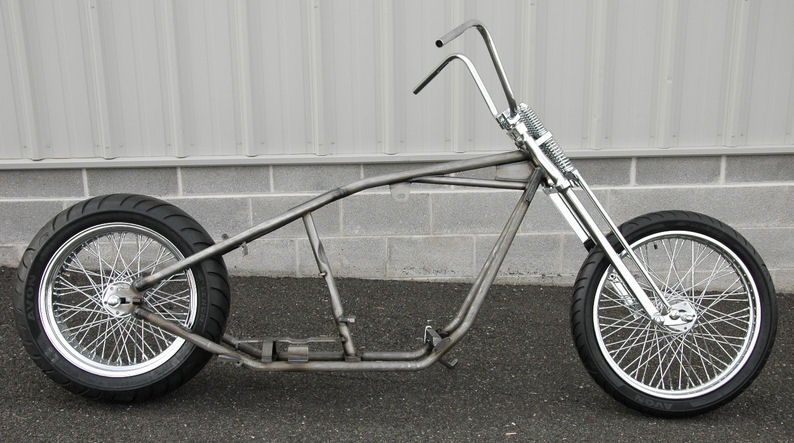

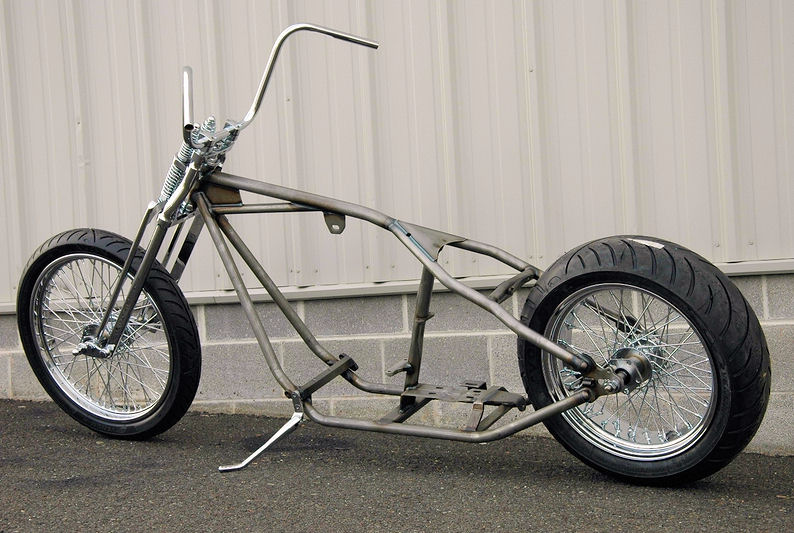

MADE IN THE U.S.A BY KRAFT TECH 36 Degree Rake. No up stretch. 3" backbone stretch. ROLLING CHASSIS / ROLLER You won't see this frame in any catalog. It was built to our specs by Kraft Tech. These rigid frames have all the rugged good looks of those found years ago but built with the technology of the 21st century. Today's high output engines require the utmost frame strength, as well as good brakes. These Frames were designed and manufactured with both in mind. Made to fit Most aftermarket Evo based motors like S&S, Revtech, Ultima, etc. Will also fit Panhead, Shovelhead or Big Twin Evolution with solid mount engine. A Manufacturer's Statement of Origin is included. * Welded on rear brake caliper mount Axle kit shown is included along Rear tire up to 200 with 1 1/8" belt or chain or 180 with 1 1/2" belt Here is what you get: 1. KRAFT TECH 200 RIGID FRAME W/ AXLE KIT PART# KACM180R 2. CHROME DNA STOCK LENGTH 22" SPRINGER FRONT END PART# M-SF-1000N 3. FRONT DNA AXLE PART# M-AX-1000 4. FRONT ULTIMA WHEEL W/ 60 SPOKES 21 x 2.15 CHROME SPOKES/HUB/RIM PART# 36-746 5. REAR ULTIMA WHEEL W/ 60 SPOKES 18 X 5.5 CHROME SPOKES/HUB/RIM PART# 36-736 6. AVON VENON 90/90-21 FRONT TIRE PART# 2808112 7. AVON VENOM 200/55-18 REAR TIRE PART# AV-451 8. CHROME CUP/BEARING/DUST COVERS PART# 12253 9. 13" CHROME HANDLEBARS PART# 0601-0568 10. 1" CHROME SHORTY RISERS PART# 25-2184 11. RISER HARDWARE PART# 0602-0110 + 6 WASHERS 13. FRONT RIM STRIP PART# DS181500 14. CHROME BILLET KICKSTAND PART# 10019 We have everything else you may need to build this bike. Email us w/ any questions. UPS GROUND SHIPPING TO THE LOWER 48 STATES. OTHER LOCATIONS ARE EXTRA! THE TWO BIKES BELOW WERE BUILT BY US USING FRAMES WITH THE SAME DIMENSIONS -AUCTION IS FOR FRAME ONLY. BIKES BELOW ARE FOR REFERENCE ONLY. Our customer support is available please call us at 610-754-8500 with any questions PAYMENT: We accept payment by PayPal and credit card, contact us for other options. Payment needs to be received within 7 days of purchase or the transaction may be cancelled. We do charge sales tax in PA (6%). State taxes will be calculated at checkout. CONTACT INFORMATION: OUR PHYSICAL/MAILING LOCATION IS 315 BIG RD(RT-73) PO BOX 298 ZIEGLERVILLE, PA 19492 PHONE 610-754-8500 FAX 610-754-8501 HOURS 10-6 M-F,10-5 S SHIPPING: SHIPPING COSTS ARE FOR THE LOWER 48 STATES ONLY. PENNSYLVANIA RESIDENTS MUST PAY 6% STATE SALES TAX. WE REQUIRE A PHYSICAL ADDRESS BE PROVIDED WITH PAYMENT RETURNS: We offer a 60 day return policy Buyer Pays return shipping. Our customer support is available please call us at 610-754-8500 with any questions
* 1 1/2" O.D. Drawn Over Mandrel (DOM) .188" wall tubing for backbone strength
* 1 1/4" O.D. Drawn Over Mandrel (DOM) .120" wall tubing for cradle and tail strength
* Additional clearance built-in at backbone for Evolution style engine with up to .200" taller cylinder/head length. Allows rear rocker box to be serviced without removal of entire engine
* Will accept 5, or 6 speed 90-99 softail style transmissions
* TIG welded on all new hardened tooling for the most accurate fit possible
* Dual gussets at front & rear motor mounts and at transmission mounts
* Boxed lower seat post mount
* Welded on exhaust hanger mount
* Fully machined hour glass style steering neck
* Fork lock tab
